The fixture’s Quad LED engine offers flicker free operation for TV and film and linear white color temperature control from 2700K 7000K.
The Encore LP7IP professional features include: 4 DMX modes, 5 operational modes, 6 selectable dimming modes, 4 selectable dimming curves, and a 4-Button DMX menu with digital display. The unit is equipped with outdoor Locking Power connectors and IP rated 5-pin DMX rubber covers and connectors. IP rated power linking and DMX cables are available, but standard 5-pin DMX cables may also be used for indoor applications.

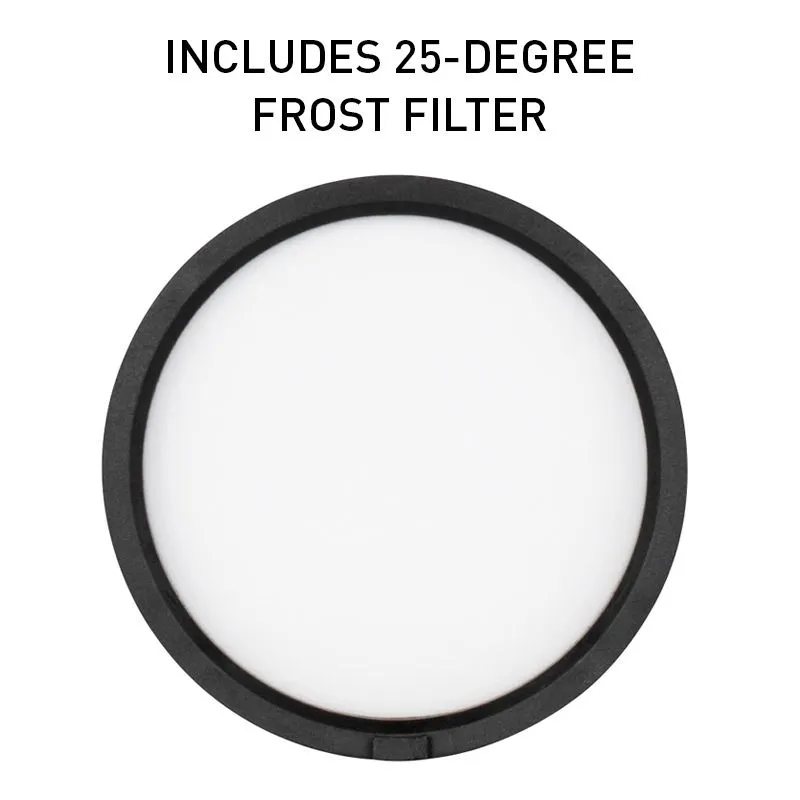

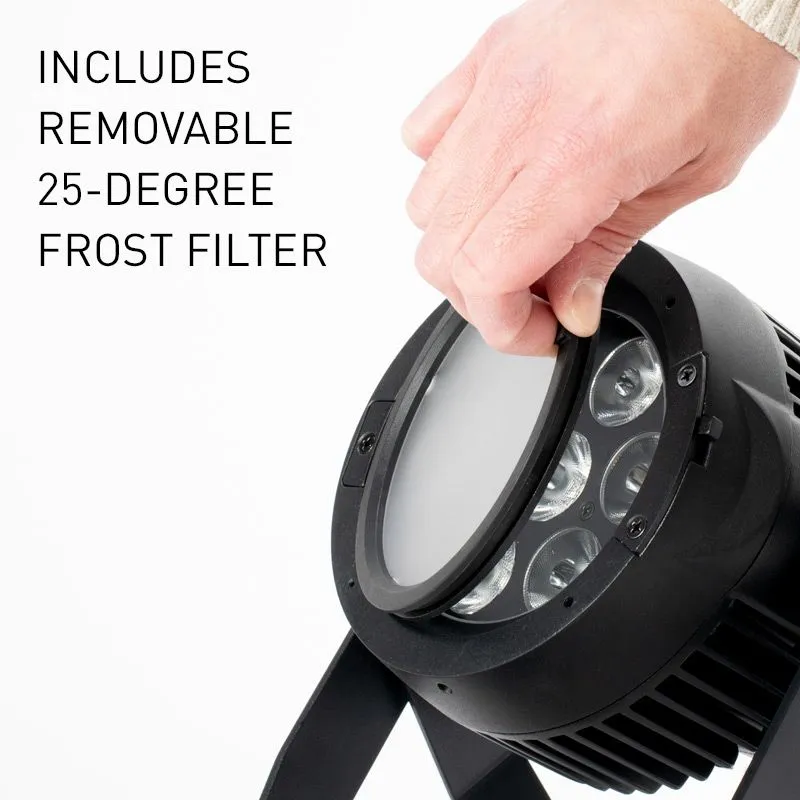

The Encore LP7IP includes a removable 25-degree frost filter. There are several additional frost filter options (sold separately) that customize the beam angle. All filter snap into the front of the fixture.
SOURCE:
• Light Source: 7 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)
PHOTMETRIC DATA:
• Beam angle: 10° (Includes 25° removable frost filter)
• CRI: 84
• CRI R9: 76.6
• Lumens: 2500
EFFECTS:
• Linear Color Temperature Control (2700K to 7000K)
• Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
• 16-Bit Fine Color Control (Red, Green, Blue & Lime)
• 64 built-in Color Macros
CONTROL / CONNECTIONS:

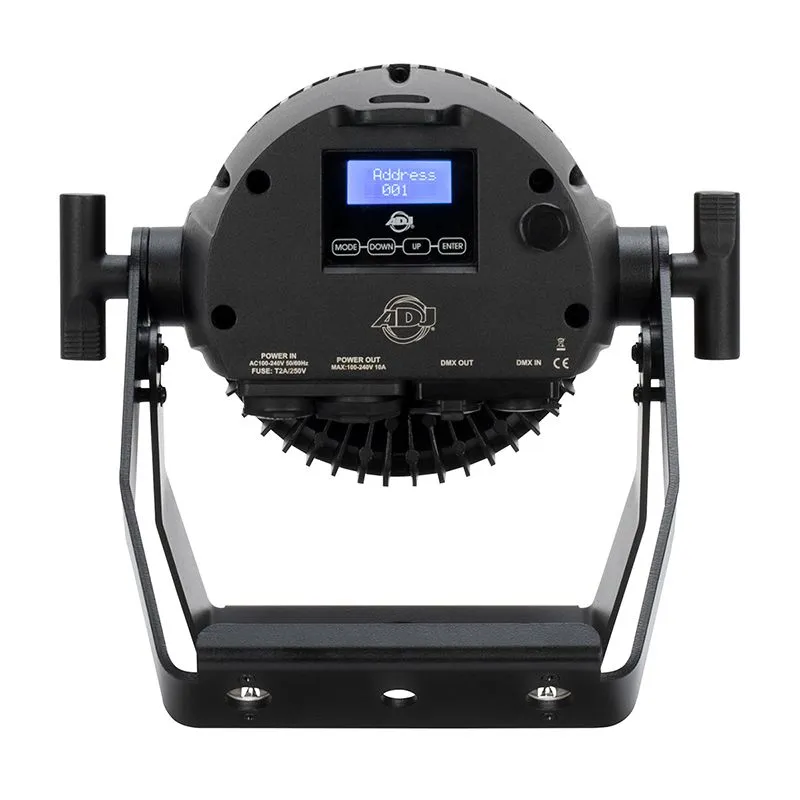

• 4-button, DMX digital display on rear panel
• 5 Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
• Supports RDM (Remote Device Management)
• With Wired Digital Communication Network
• 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• 4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
• Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
• Flicker Free operation (No flickering on camera)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%
• 4 DMX Modes: 4, 5, 7 & 11-channel
• Quiet fan mode
CONSTRUCTION:
• IP65 Rated: Ingress Protection against liquid, snow, dust and sand
• All metal construction

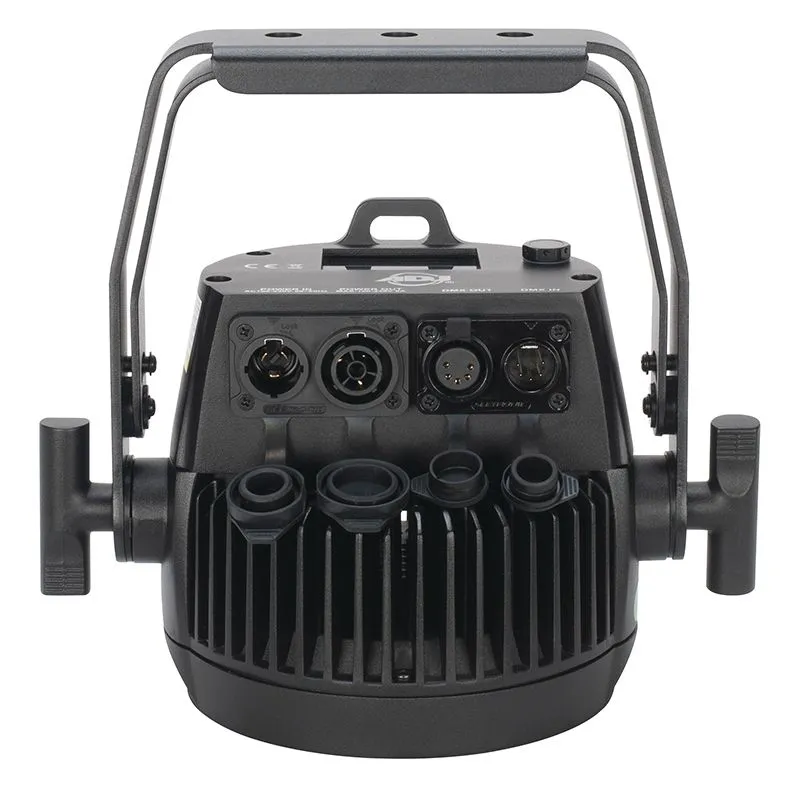

• IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
• Locking, outdoor IN/Out Power connectors
• Data linkable via 5-pin XLR DMX connections
• Scissor Yoke & safety eye
ELECTRICAL / THERMAL:
• Multi-voltage operation: AC 100-240V, 47/63Hz
• Daisy chain: 10 @ 120V, 20 @ 220V
• Max power: 103W
DIMENSIONS / WEIGHT:
• Dimensions (LxWxH): 8.65” x 6.5” x 9.5” / 220x160x242mm
• Weight: 7.5 lbs. / 3.45 kg.
APPROVALS / RATINGS:
• cETLus Pending
• IP65
INCLUDED ACCESSORIES:
(1) 25° Frost Filter
(1) Power Cord
(1) Safety Cable
OPTIONAL ACCESSORIES:
ELP7L100: 100° frost filter for the Encore LP7IP
ELP7L60: 60° frost filter for the Encore LP7IP
ELP7L30X60: 30x60° frost filter for the Encore LP7IP
ELP7L1X40: 1x40° frost filter for the Encore LP7IP
ELP7L20: 20° frost filter for the Encore LP7IP
Z-8050000053: 107mm Omega Bracket
