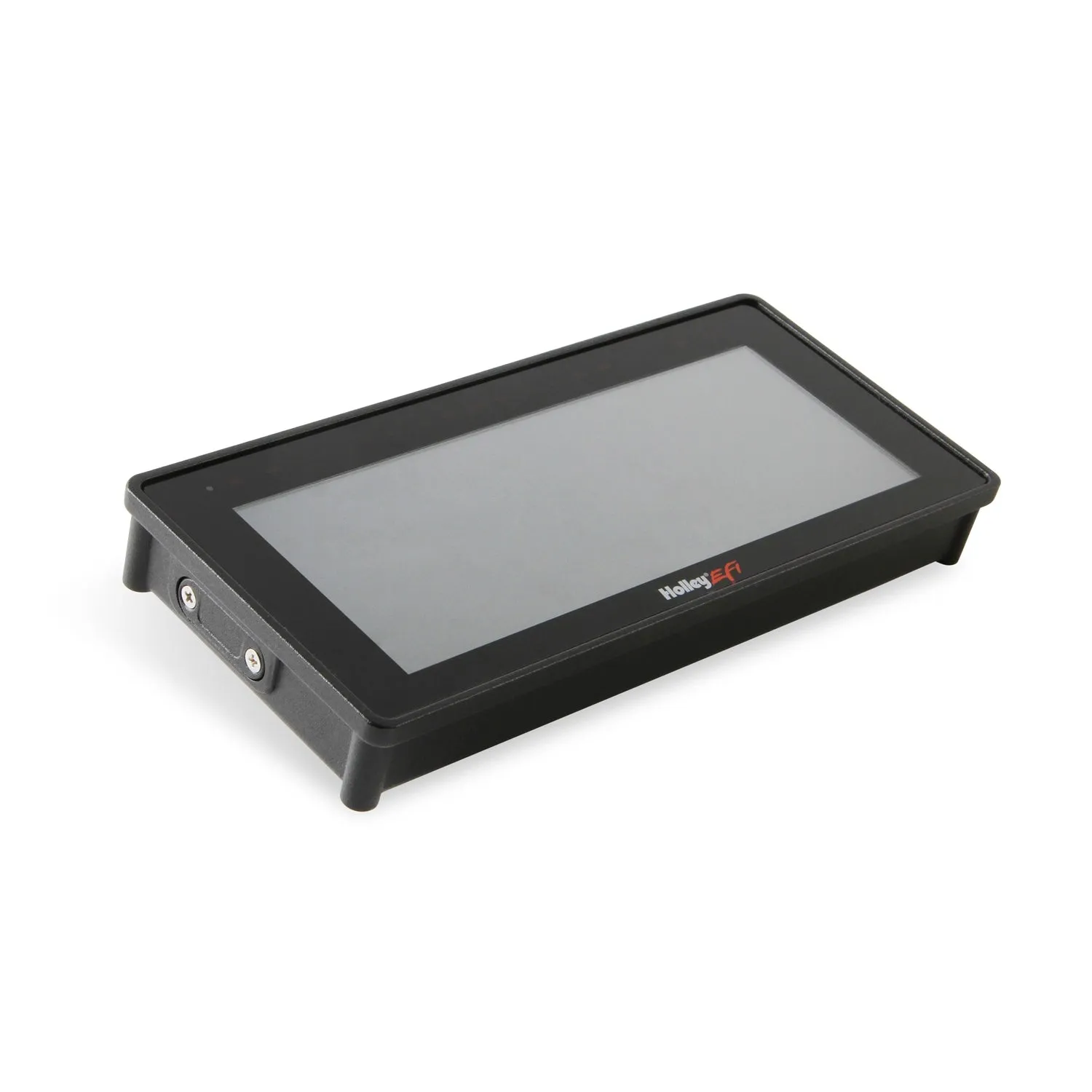

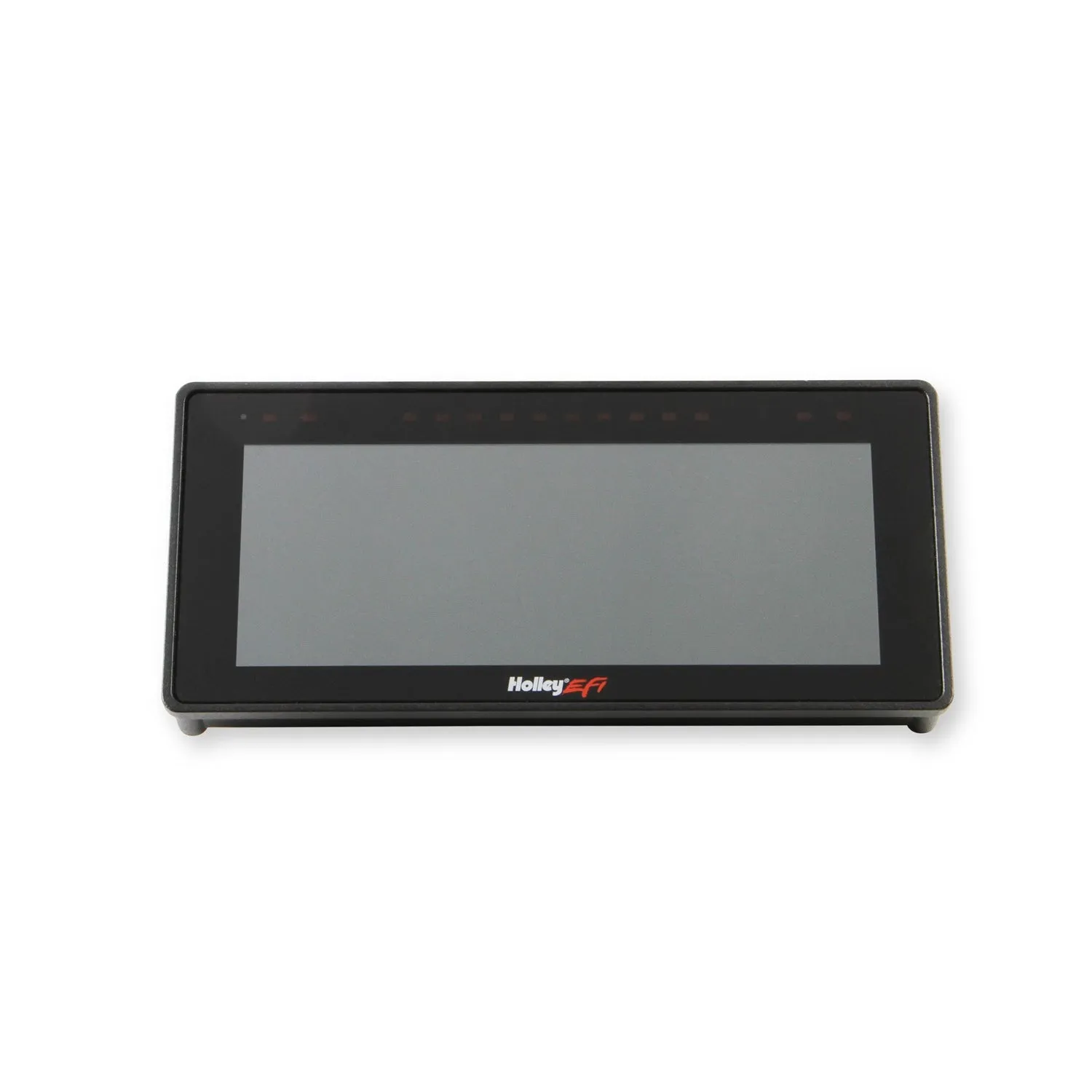

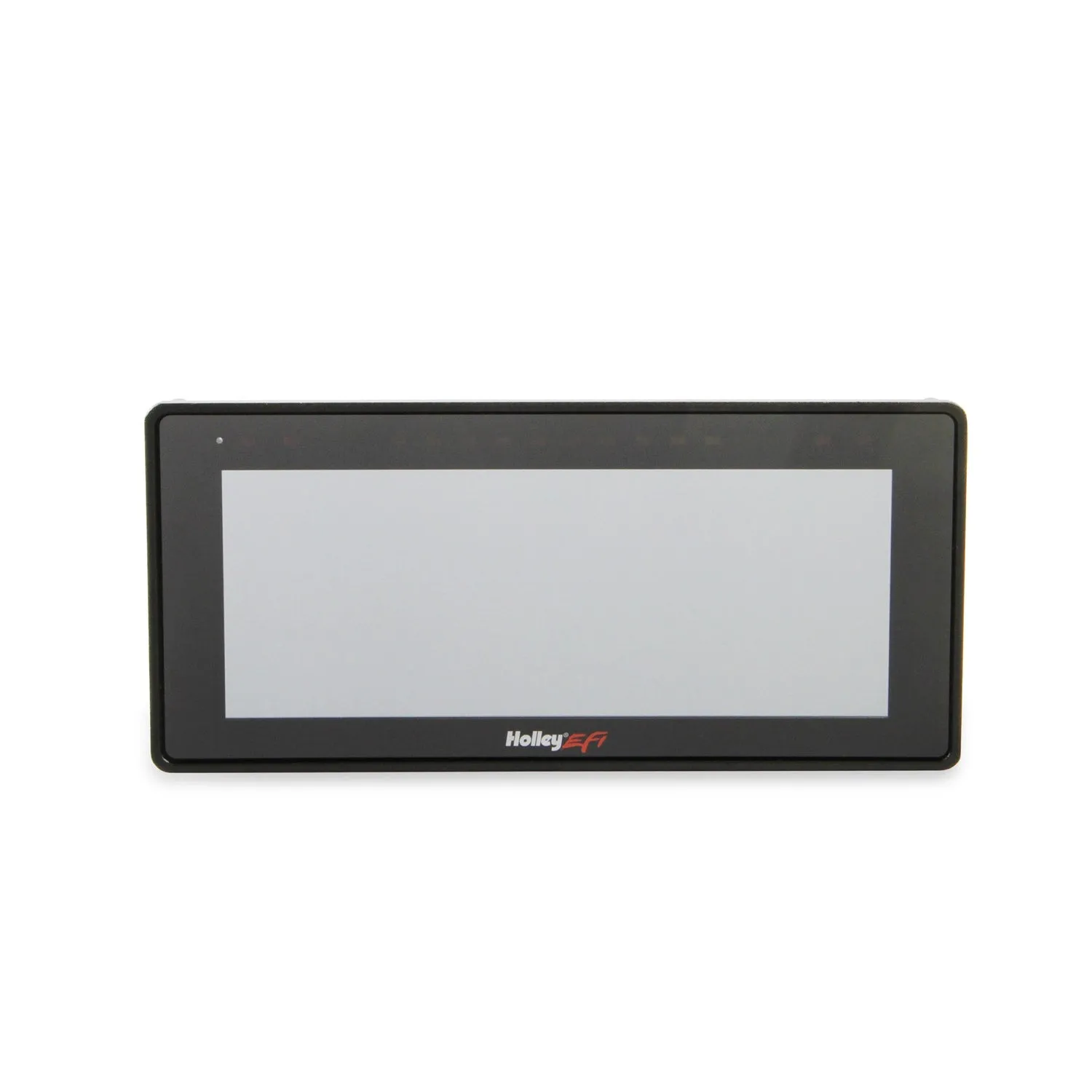

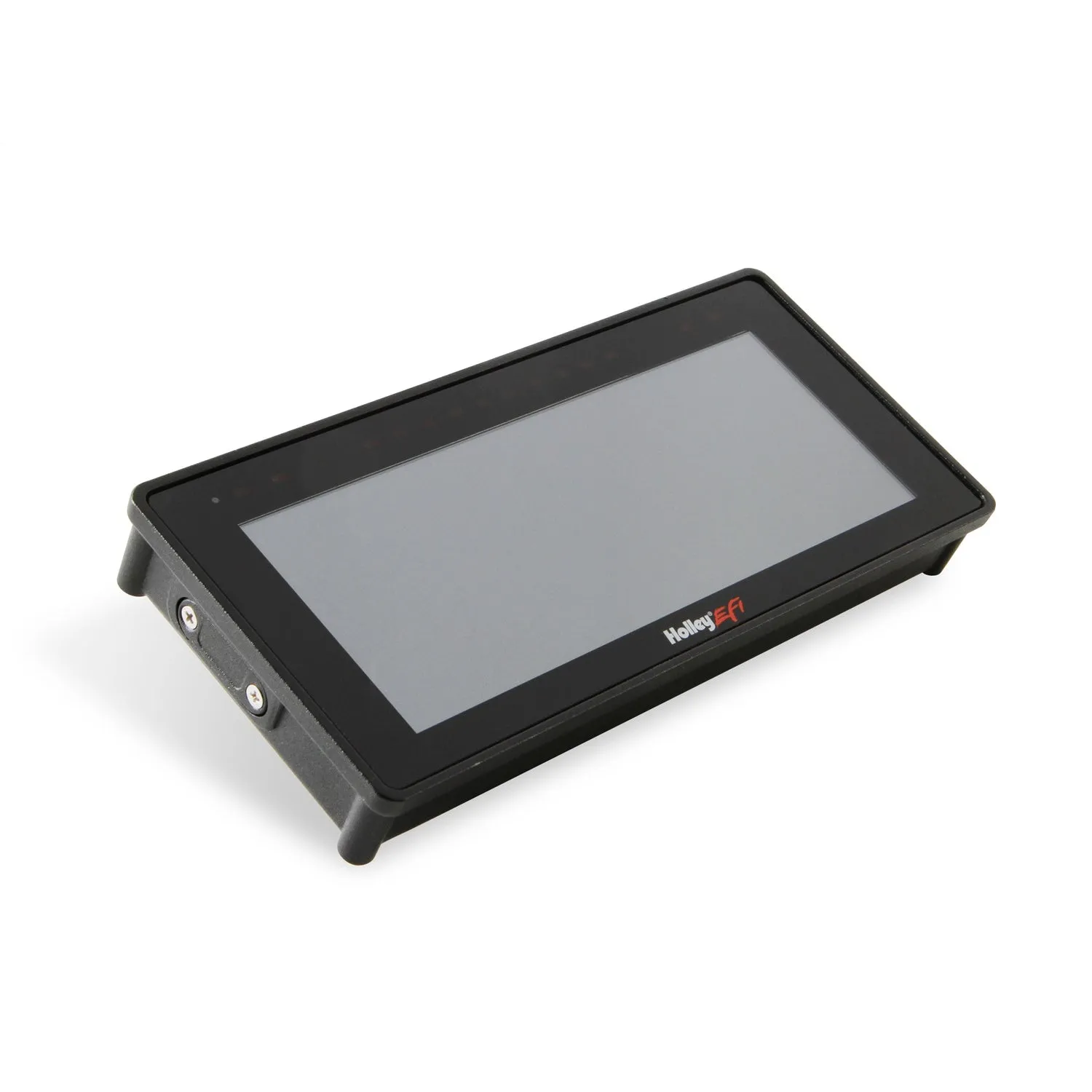

Name: Holley EFI Pro Dash - Digital - 7.60 x 6.86 x 3.50" Rectangular Touch Screen - Multiple Gauges - Programmable - Black Face
SKU: 154979

Dashboard Panel

Two models available:

6.86" version is big on features, but small on size for installation almost anywhere!

12.3" version is for the hard-core enthusiast who wants the ultimate display device!

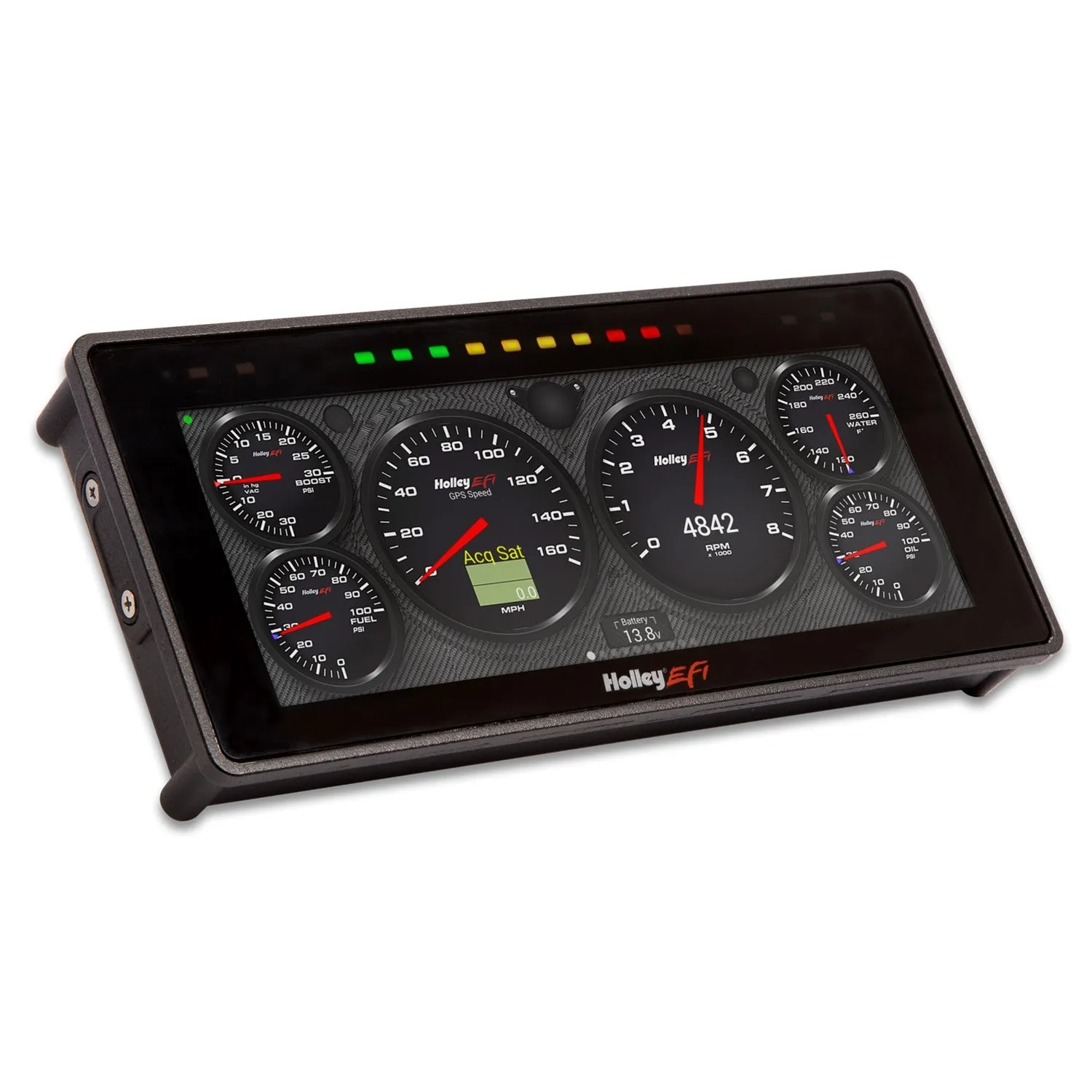

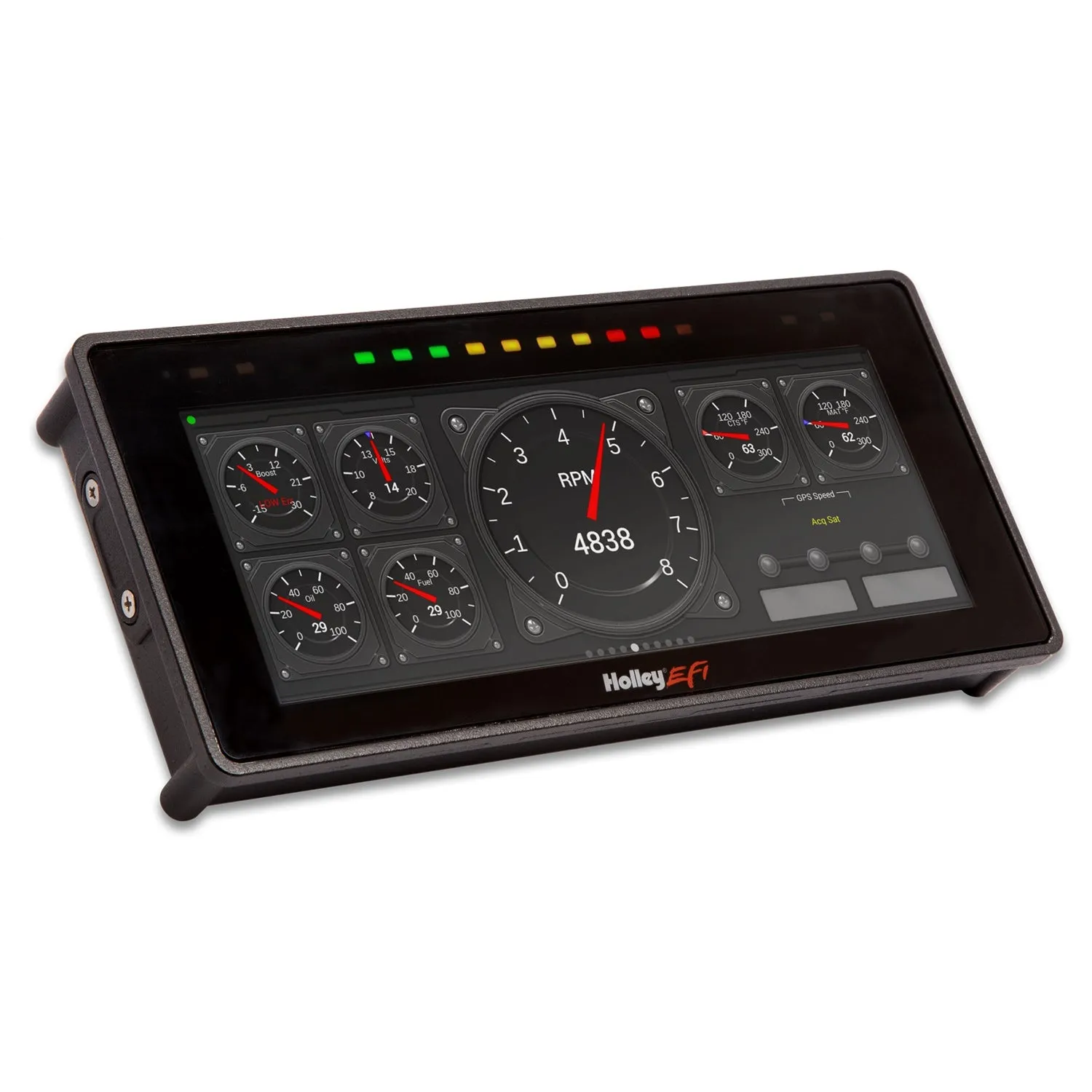

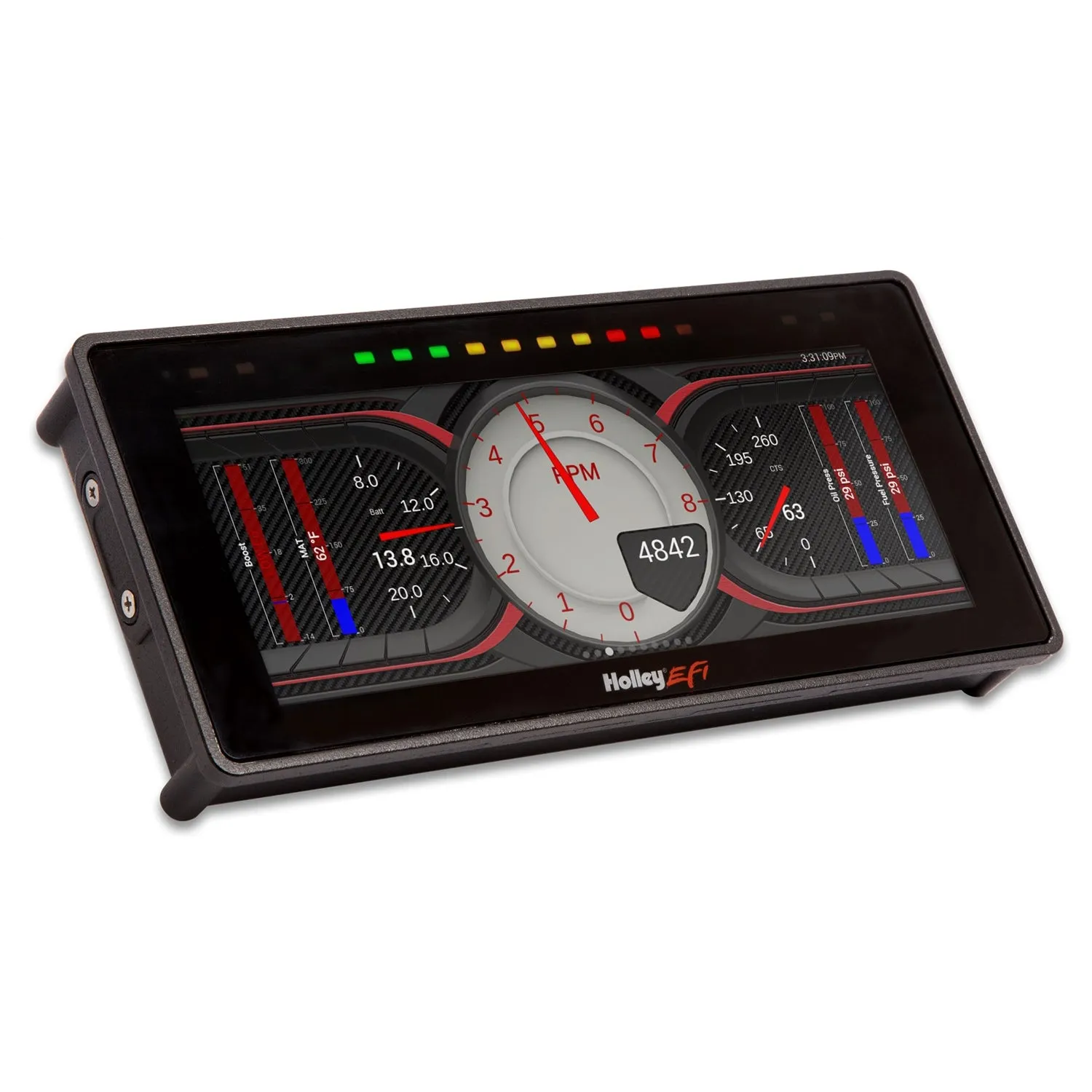

High resolution, state-of-the-art, multi-gauge touch-screen display with fully configurable layouts:

Full color, capacitive touch screen with auto dimming offers crystal clear data at your fingertips - day or night - no stylus needed

Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)

Virtual switch panel eliminates the need for external toggle switches

16 default backgrounds skins pre-loaded with unlimited options for importing custom layouts

Built-in GPS with speed, odometer and trip odometer function (external antenna included)

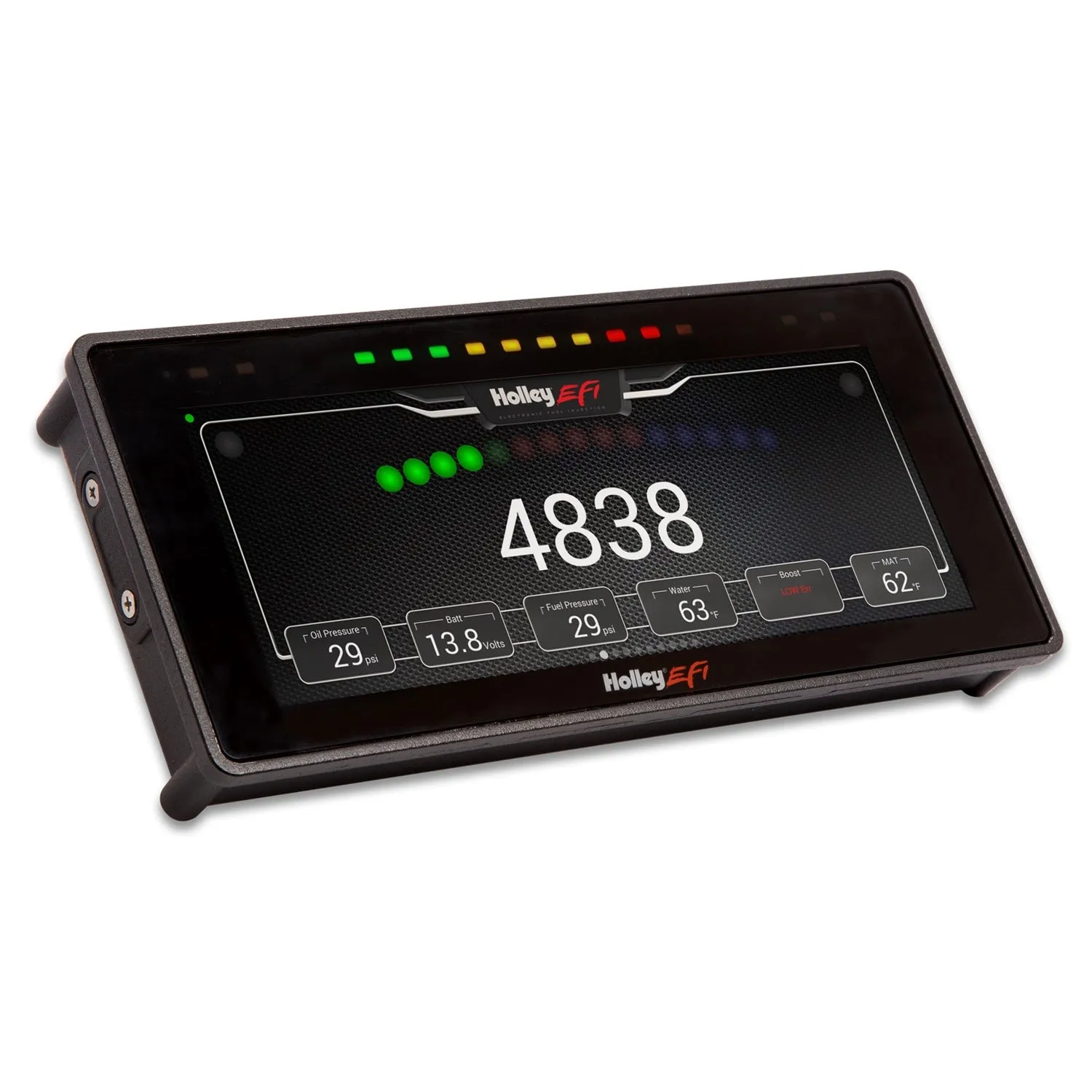

Integrated 10-LED programmable shift light w/ 4-LED warning indicators for other sensor inputs. (6.86" dash only)

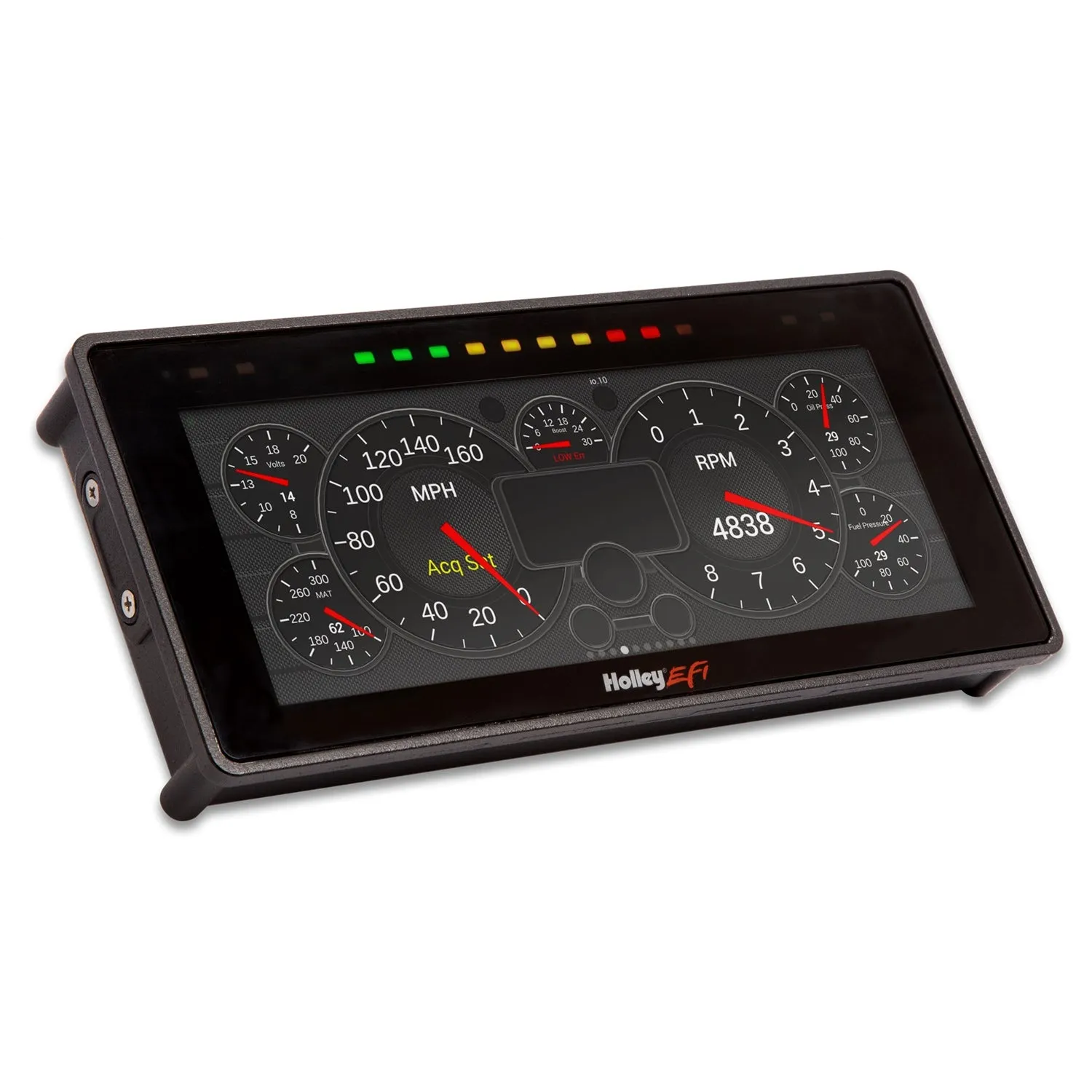

Rendered analog (dials / needles) and digital gauge styles available

Integrated datalogger

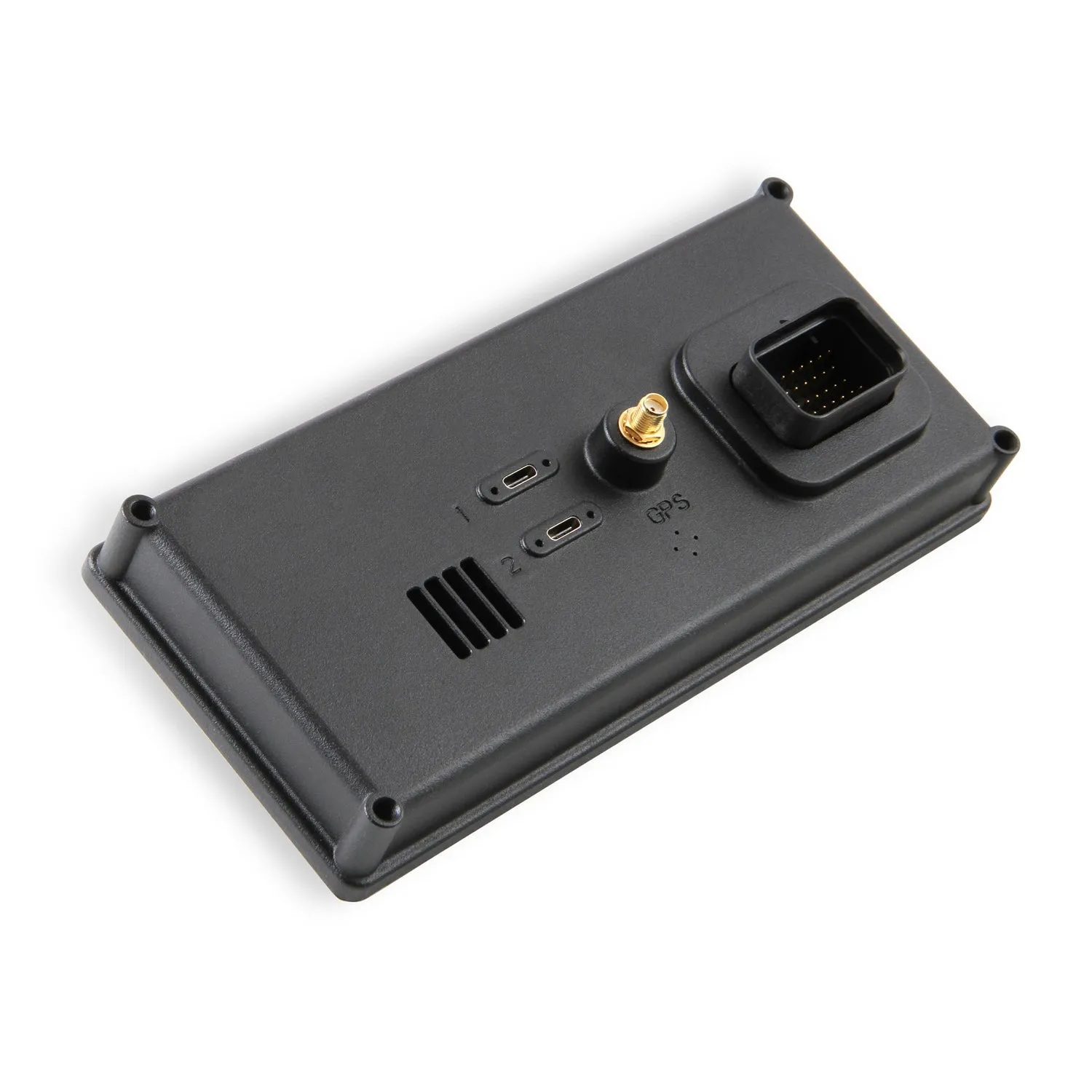

Rugged, water resistant case is constructed of cast aluminum for long life and durability

Plug and play features are pre-configured in the harness and include dash layouts / screens for::

Oil and fuel pressure, coolant and air temp (utilizes plug and play Holley sensors, not included)

Turn signals

High beam

Fuel level

Engine vacuum / boost

Additional input and output functionality:

13 multi-configurable inputs

4 ground switched outputs

Four speed channels (two dedicated) for RPM, driveshaft speed, or any other Hall effect speed input

User definable channel alarms and warnings

Communications / Harness:

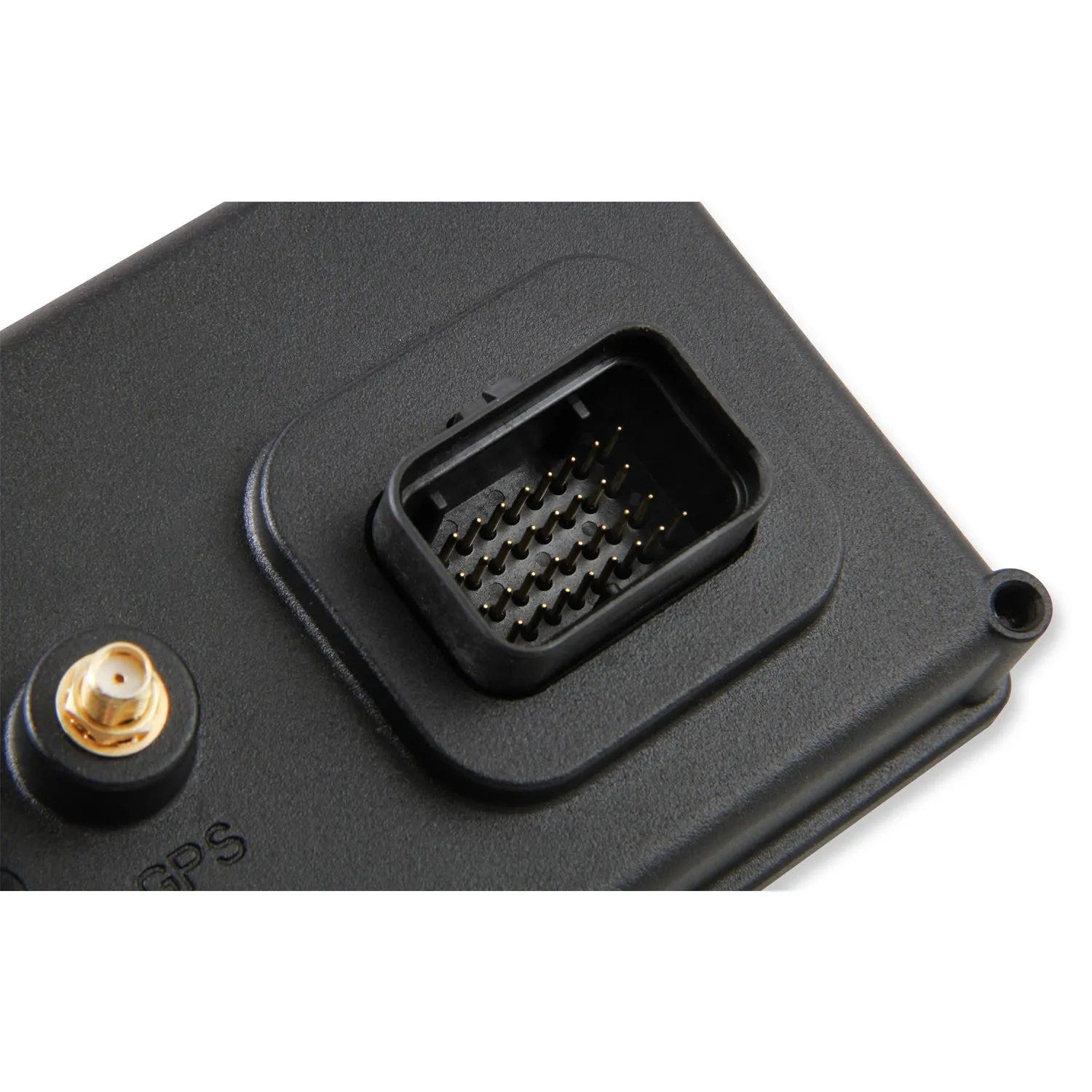

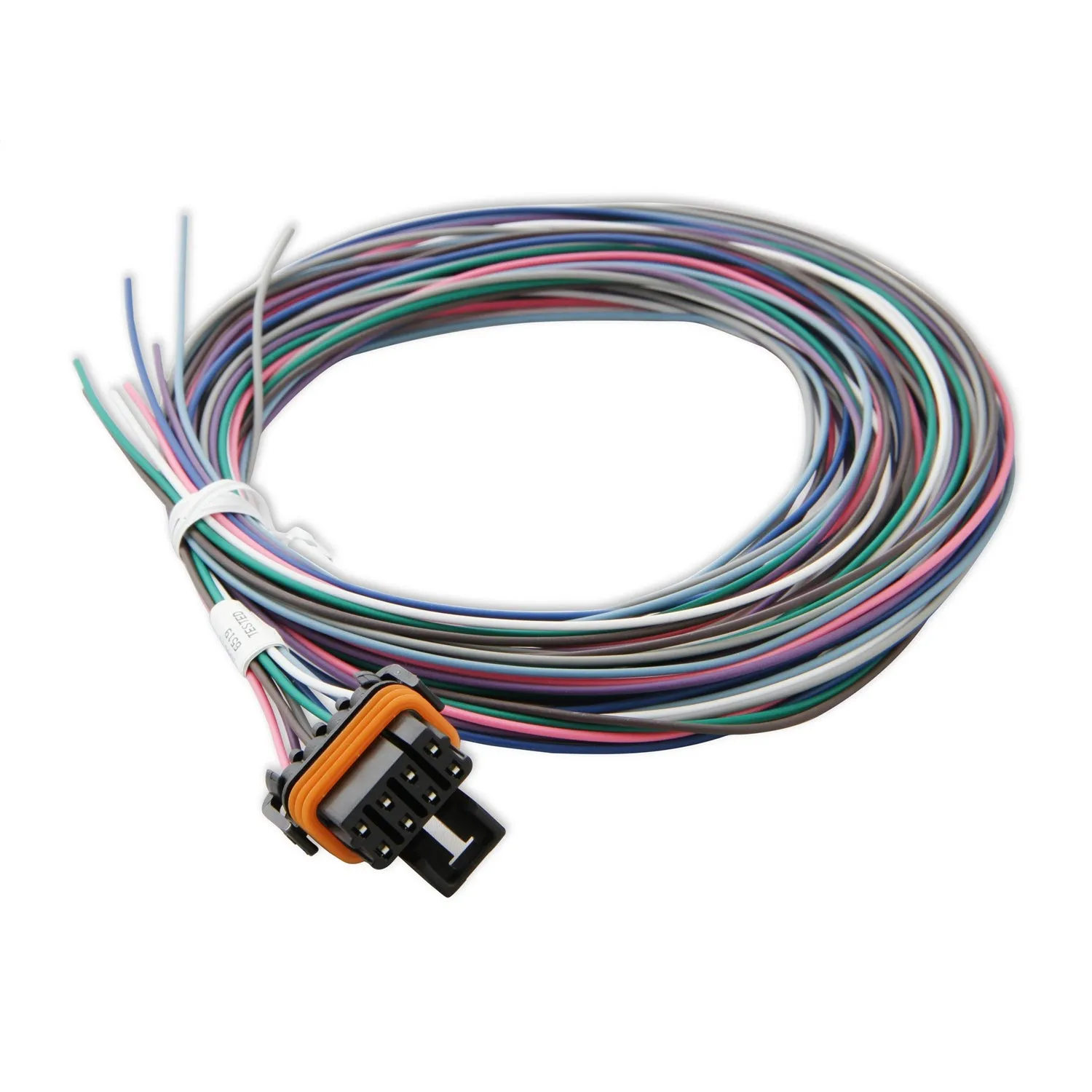

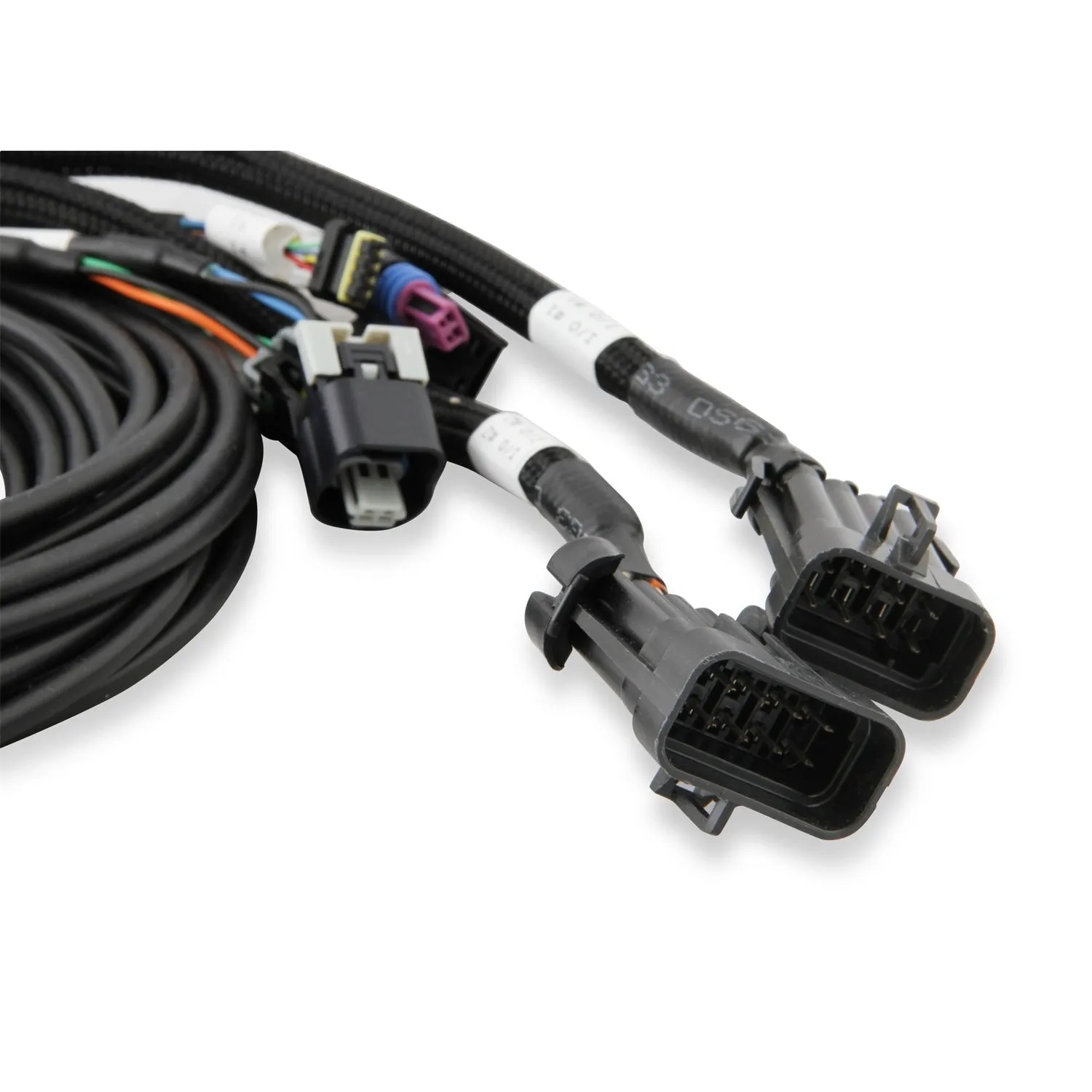

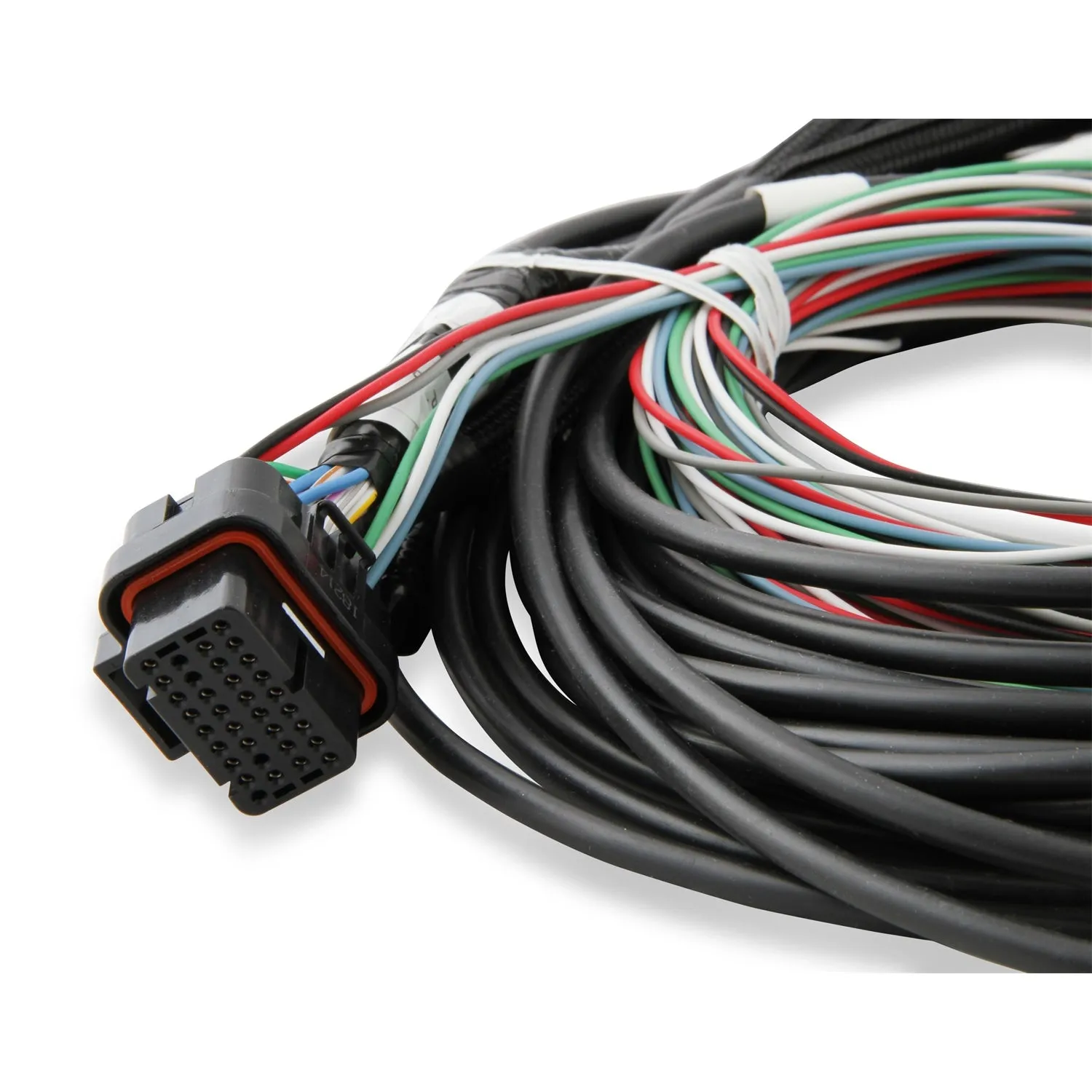

4 Pin Wiring Harness contains Power, Ground and CANbus connections

Holley EFI CANbus connection for expanded capability with Holley EFI systems

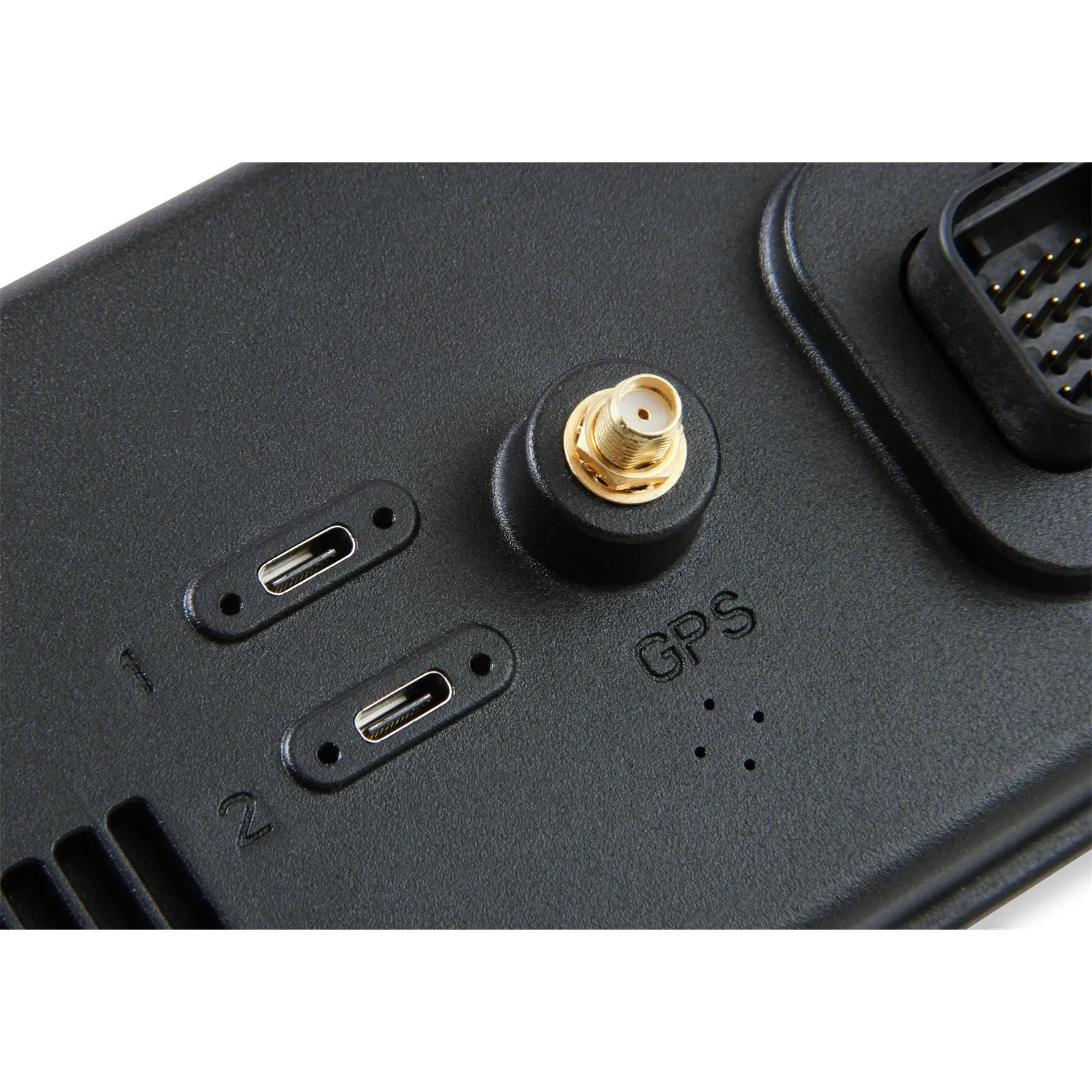

Expandable storage via USB

Integrated Datalogger:

Internal Log Memory - 1 GB (expandable up to 32GB with addition of micro-SD card)

On-screen datalog playback allows you to review vital run information right on the dash

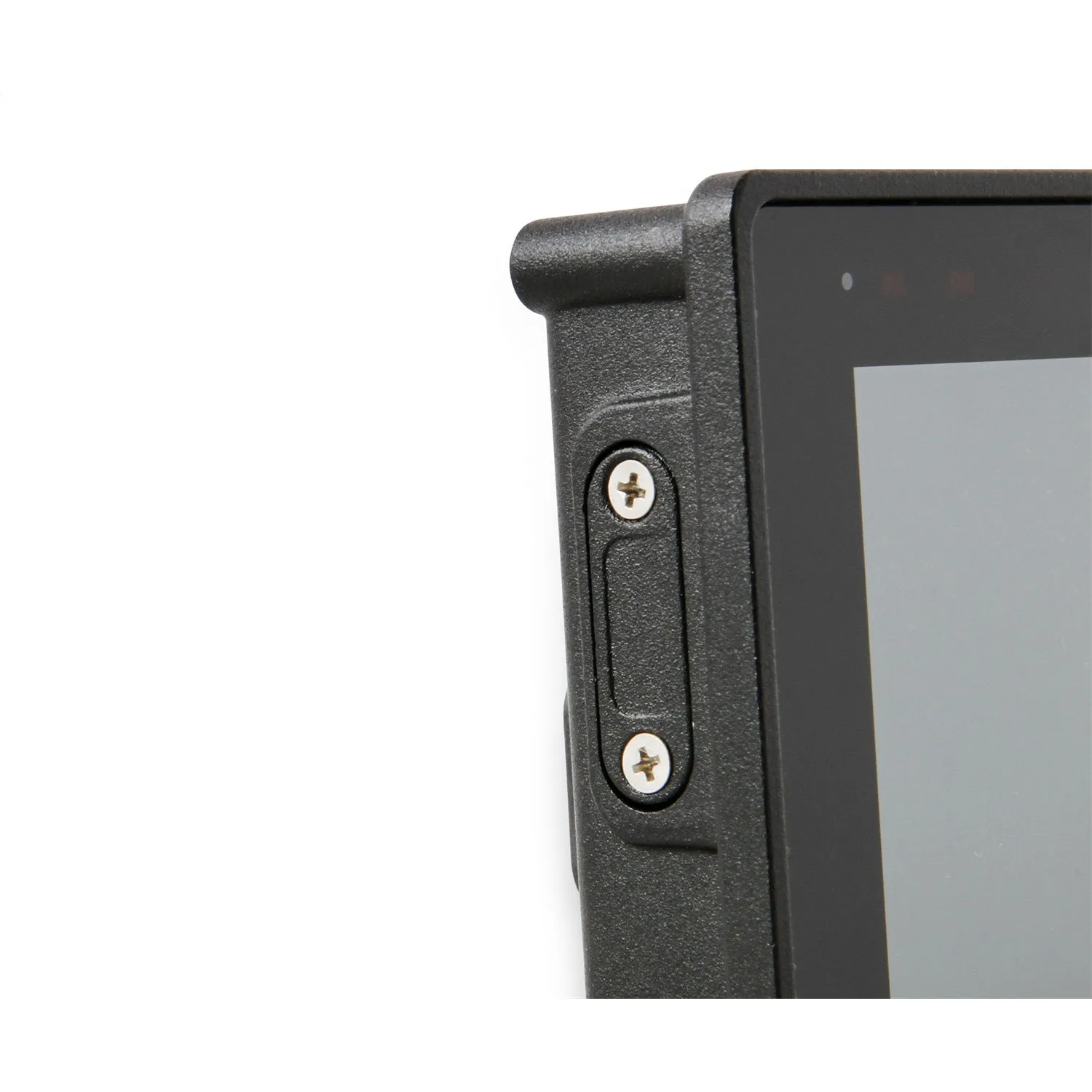

Flexible mounting options: Surface or flush mounting, with high quality hardware included

Simple setup and programming: USB Keyboard and Mouse functionality makes it quick and easy to setup new layouts

Fully Upgradeable:

Upgradable with future software enhancements

Can easily be converted for use with Holley EFI to monitor up to 238 real-time values such as RPM/TPS/Boost

Compatible with Holley EFI Plug and Play Programmable Shift Light - Part Number 553-107

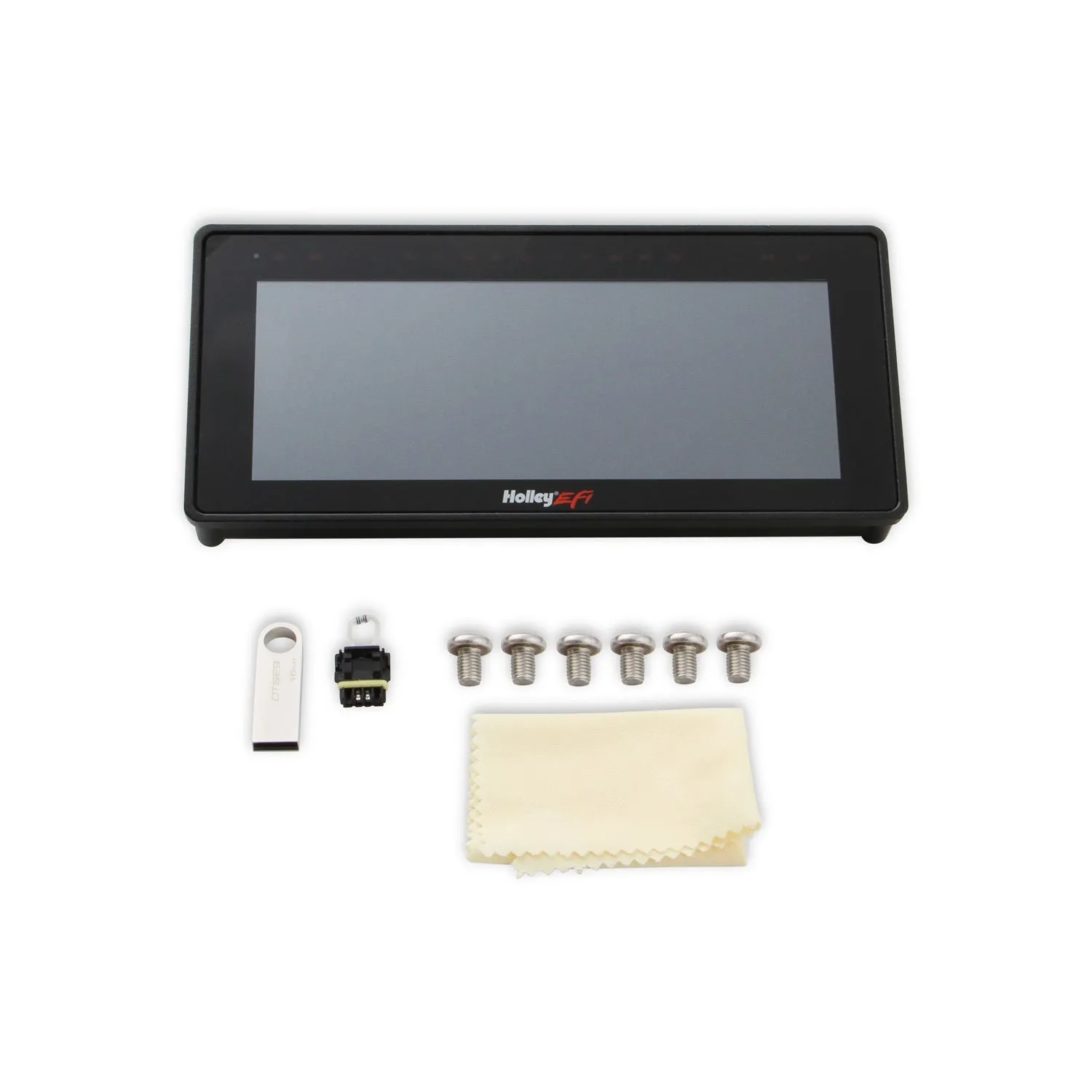

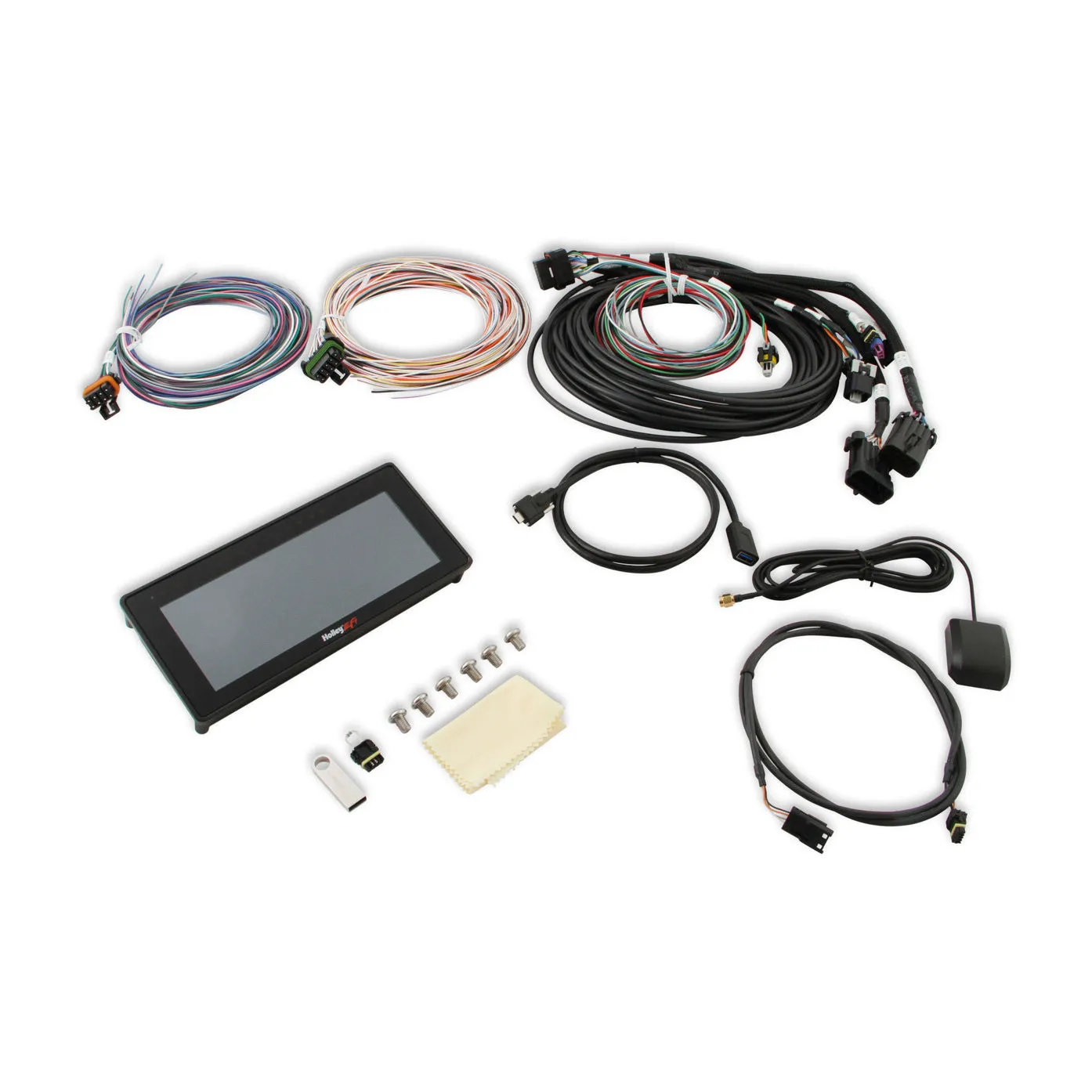

What's Included:

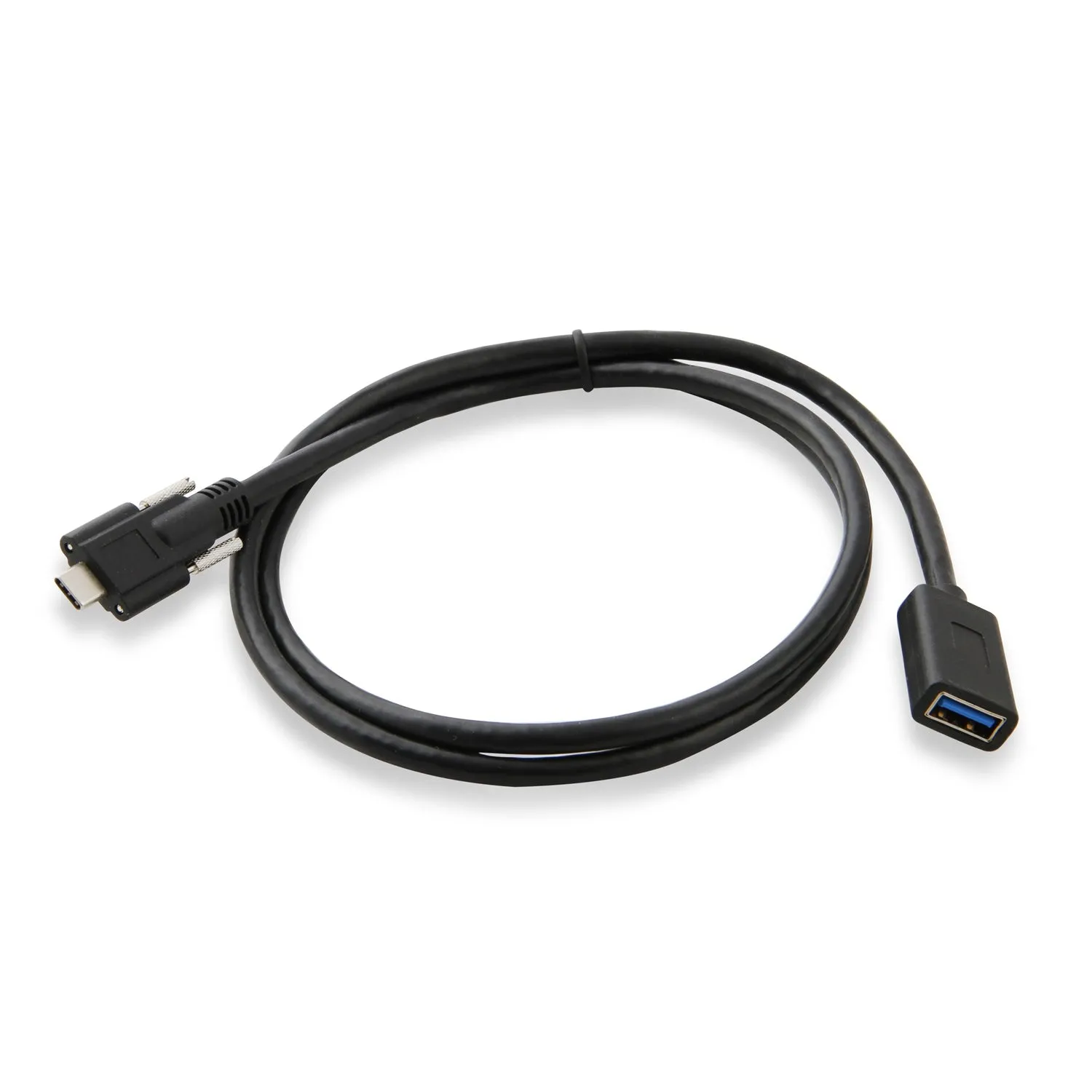

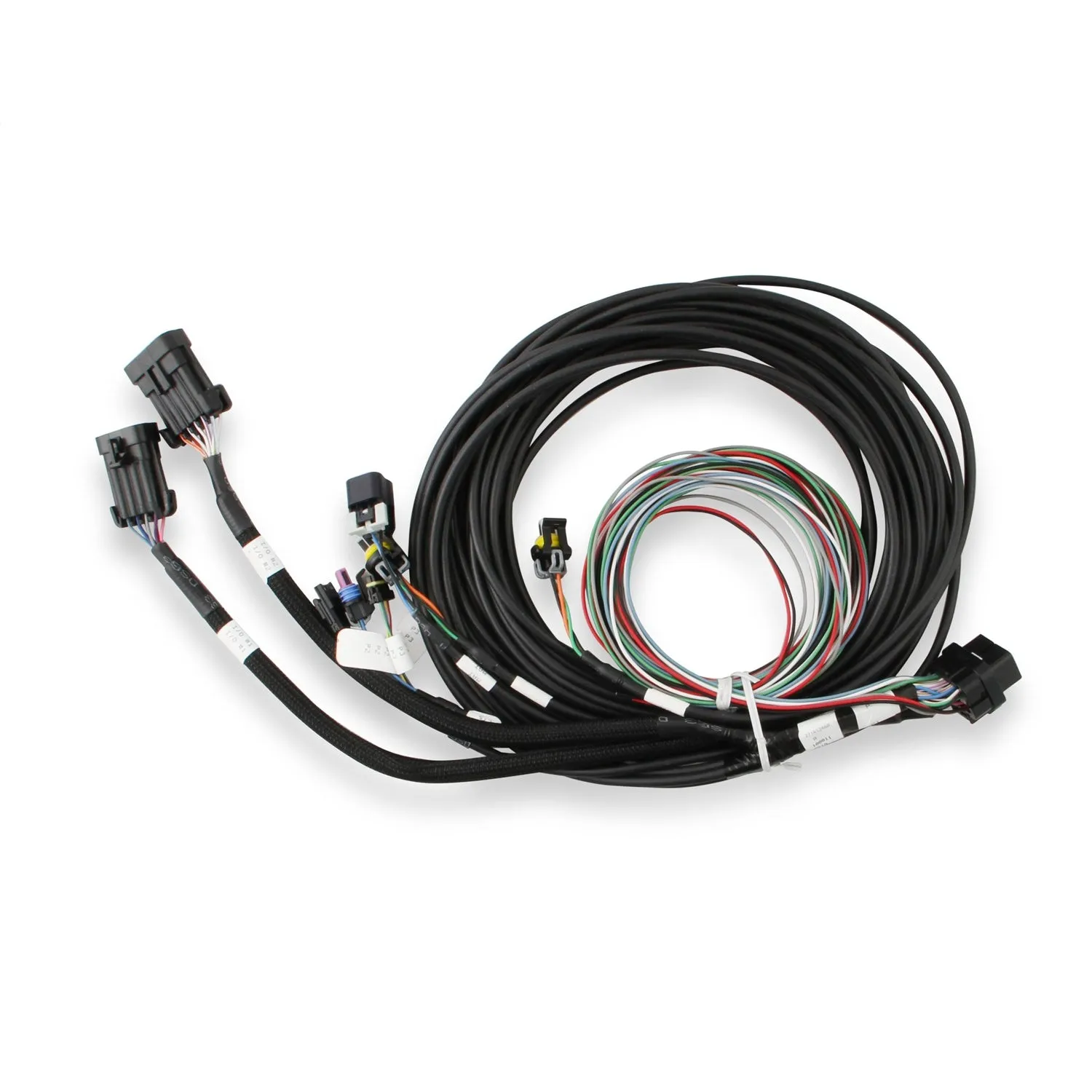

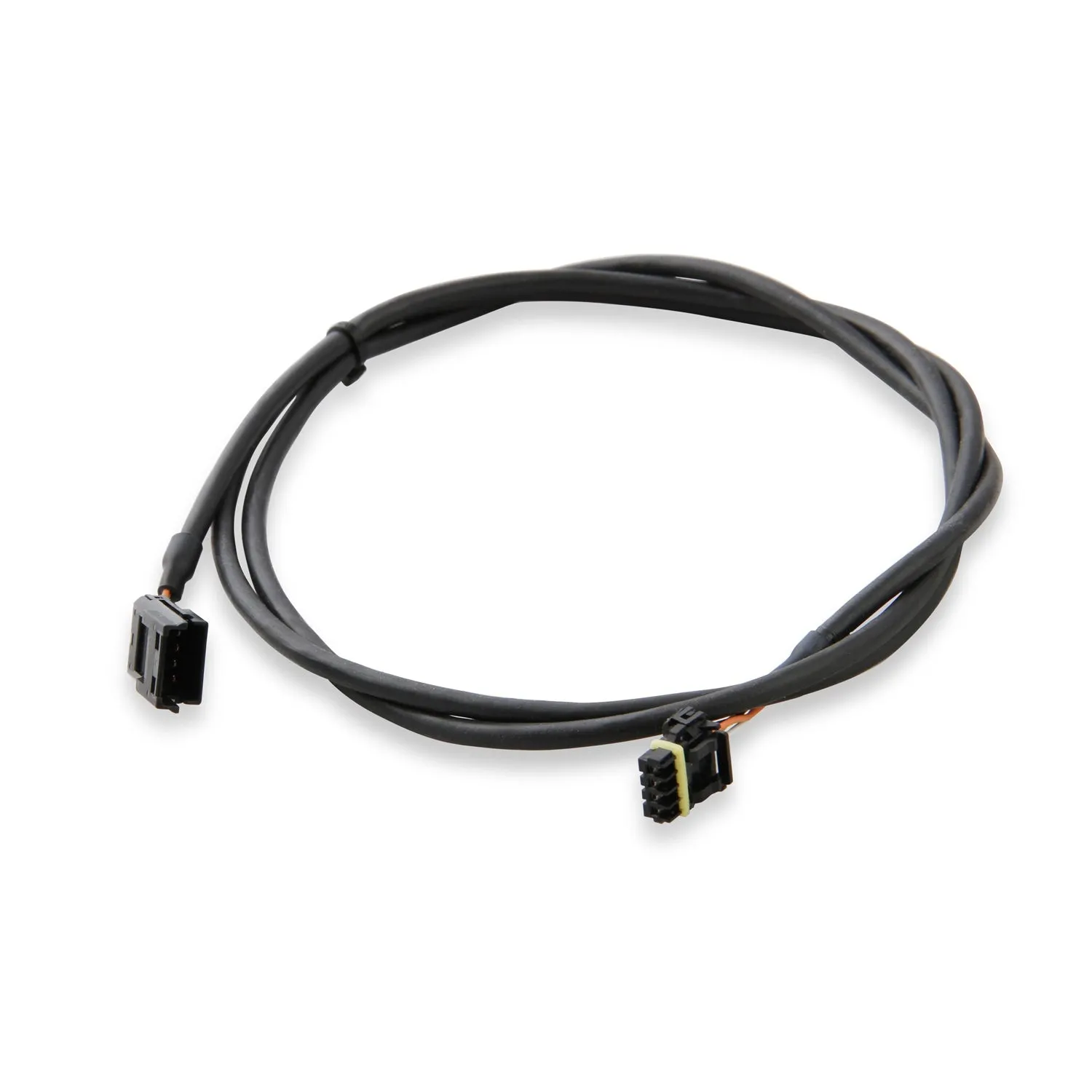

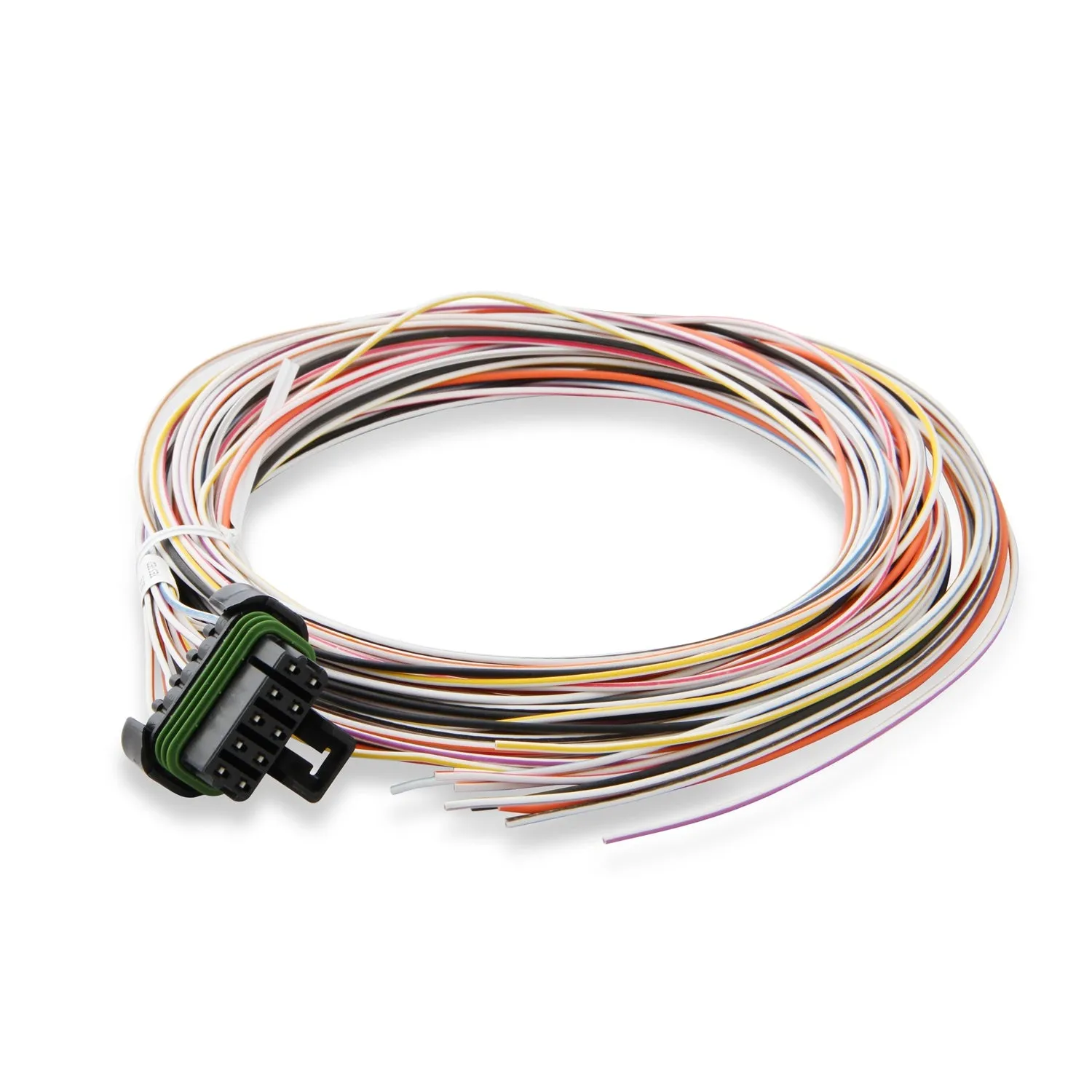

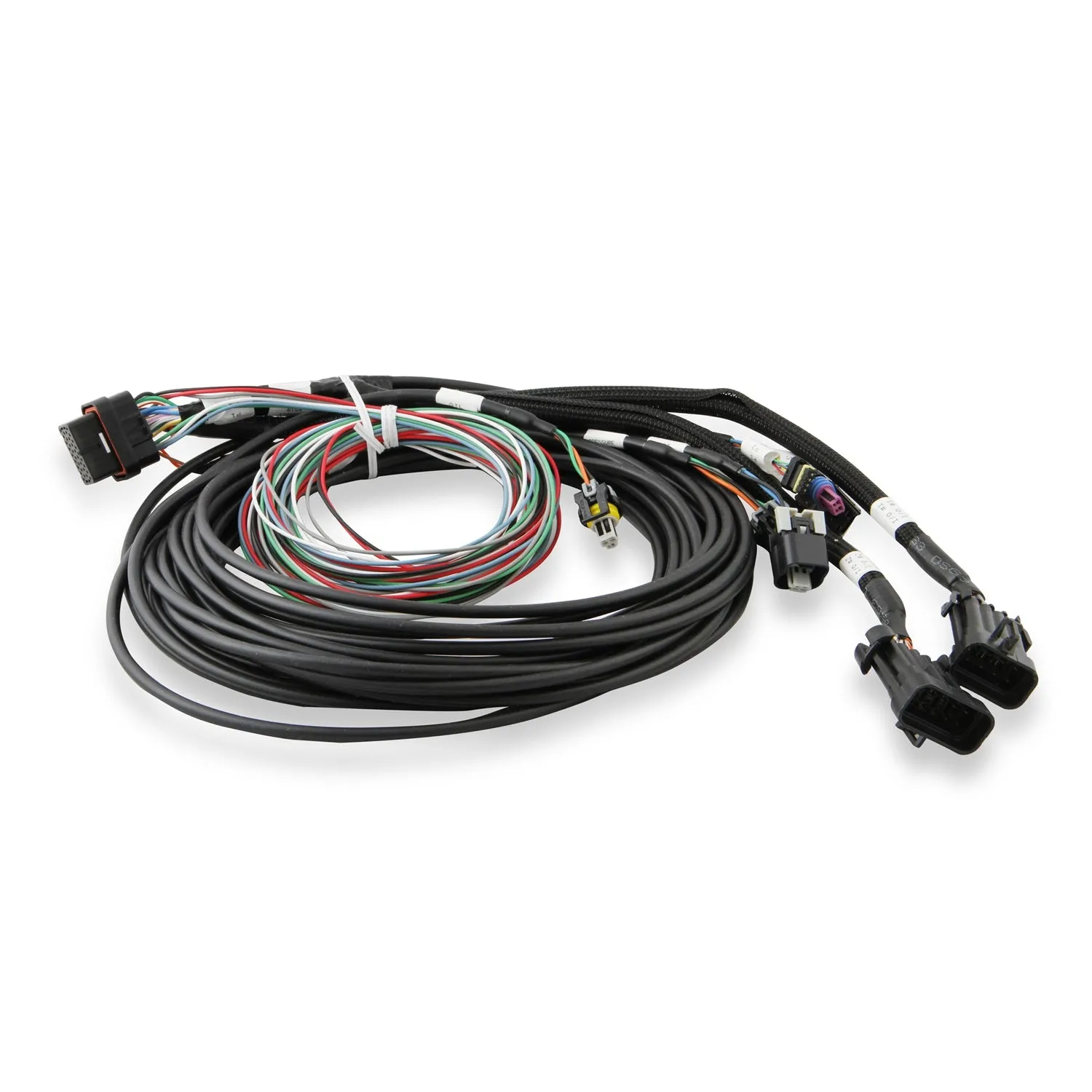

Both dash versions include harness / cables, mounting hardware, USB memory stick and CAN terminator

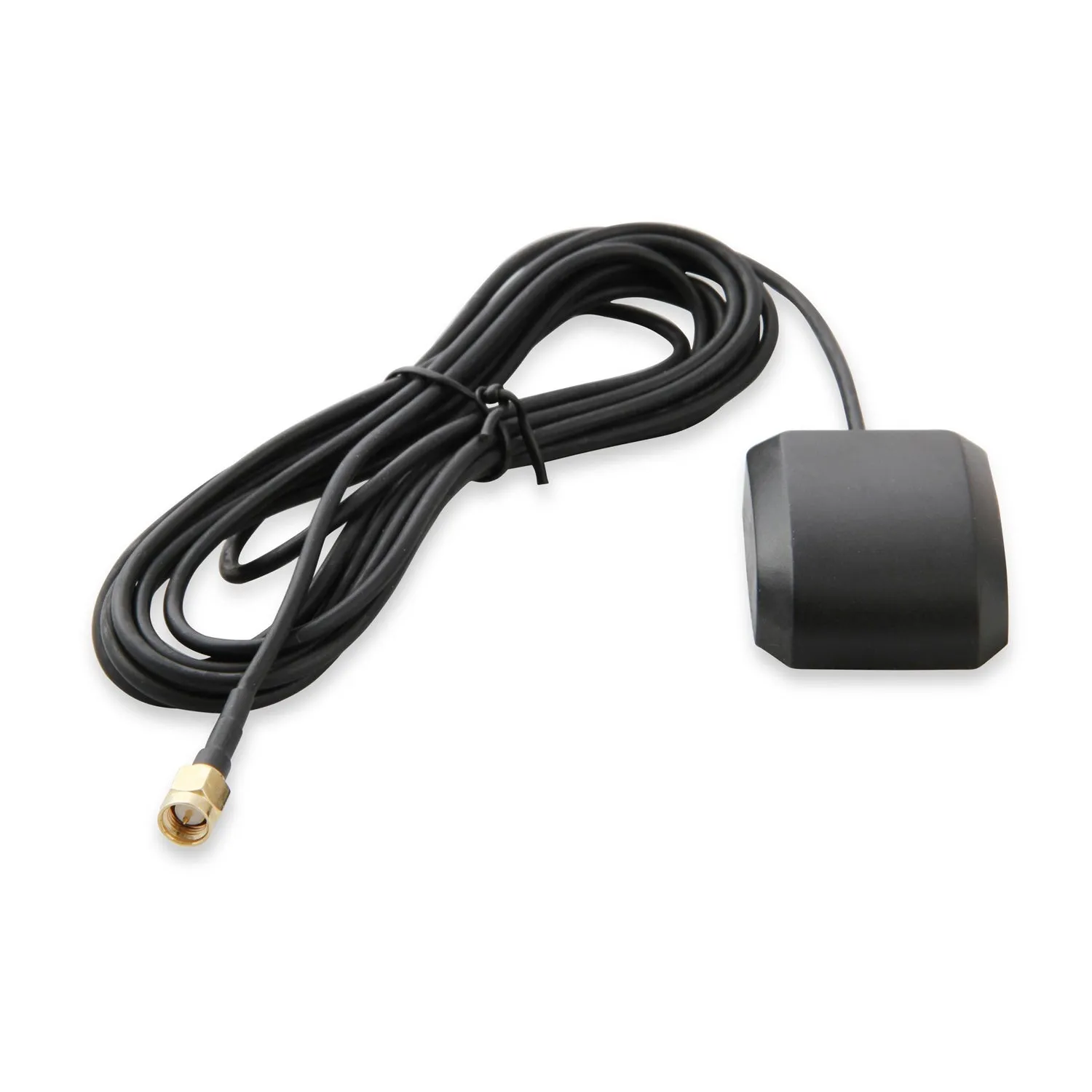

GPS Antenna

Sensors not included

Product Description:

Gauge Panel Assembly

EFI Pro Dash

Digital

7.60 x 6.86 x 3.50 in Rectangular Touch Screen

Multiple Gauges

Programmable

Black Face

Kit
