- Fast and accurate non-contact RPM and TOT measurements of rotating objects
- RPM Non-contact range: 2 – 100 000RPM
- TOT count mode range: 1 – 100 000RPM
- Detecting distance: 50 – 500mm
- 5 Digit backlit LCD
- Auto Range
- Data Hold
- 40 Reading memories
- Min / Max
- Resolution 0.1RPM
- Built-in laser spot

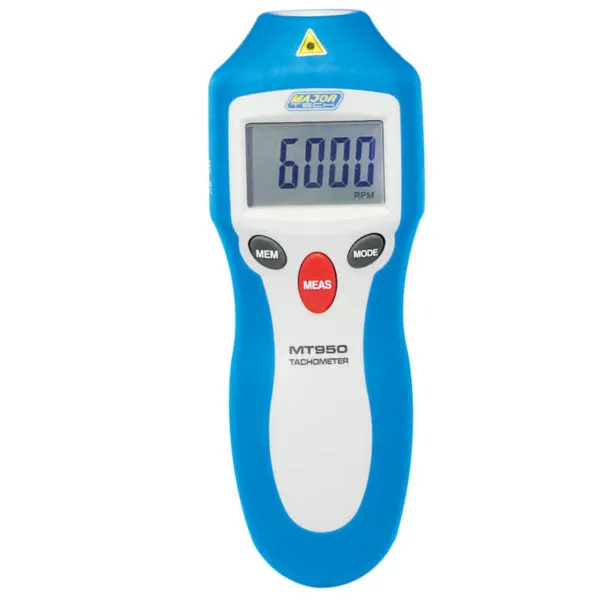

The MT950 provides fast and accurate non-contact revolutionary measurements for rotating objects. Using reflective tape on an object to be measured, simply point the laser at the object, the tachometer RPM will then measure up to a maximum of 100,000 revolutions with an accuracy of ±0.05% and a fast sampling time of 0.5 seconds. The MT950 has a built-in memory that recalls the Min/Max and last value stored. The meter can also be used as a Total TOT counter where the meter can be set up to count passing objects. The MT950 is lightweight and easy to operate.
Specifications
| Function | Range | Resolution | Accuracy |
| Non-Contact Test Range | 2 – 100 000 RPM | 0.1RPM | ± (0.05% 1 Digit) |
| Count Range | 1 – 99 999 REV | ||
| Sampling Time | 0.5s (over 120RPM) | ||
| Detection Distance | 50mm – 500mm | ||
| Time Base | Quartz crystal | ||
| Digital Display | 5 Digit LCD | ||
| Overrange Indication | Yes | ||
| Min Max | Yes | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Over mould | ||
| Low Battery Indication | Yes | ||
| Batteries | 9V | ||
| Weight | 160g | ||
| Dimensions | 160 x 60 x 42mm | ||
Includes:

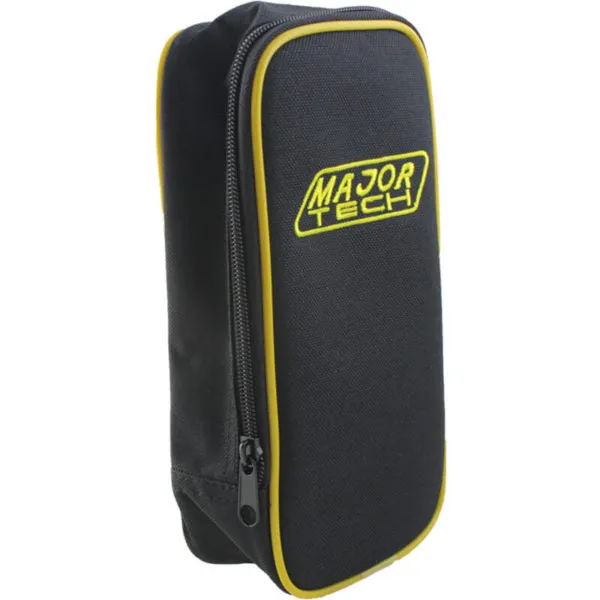

- Carrying Case

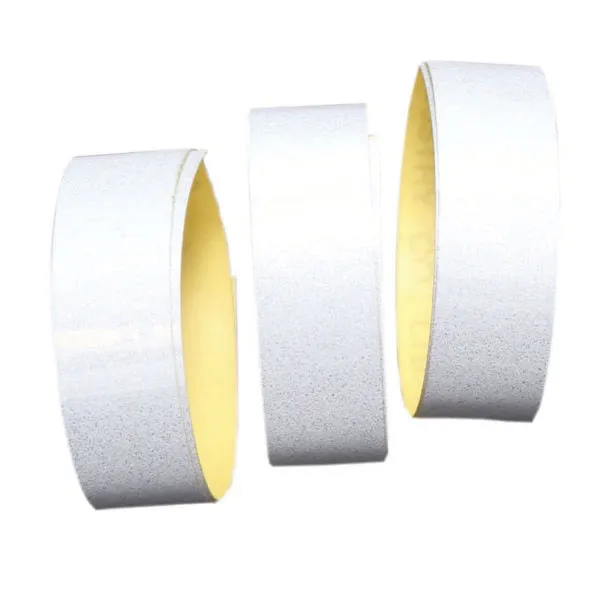

- 3x MT905 – Reflective Tape

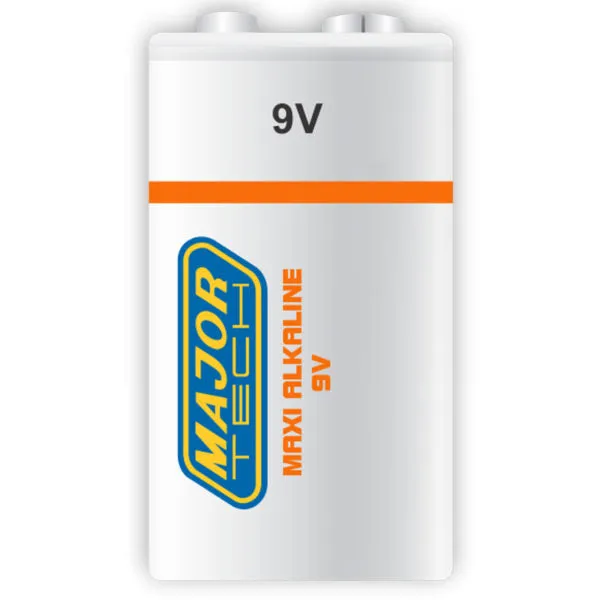

- 9V Battery
- Instruction Manual
