Features:
- 500 MHz bandwidth
- 4 Flex Channels
- Each Flex Channel provides one analog signal or eight digital logic inputs with an optional TLP058 logic probe
- Real time sample rate: 6.25 GS/s (all analog/digital channels)
- Record length: 62.5Mpoints (expandable via option)
- Waveform capture rate: > 500,000 waveforms/s
- Vertical resolution: 12-bit ADC, up to 16-bit in High Res mode
- 15.6” capacitive touchscreen (1920 x 1080 resolution)
- 5 Series B features several upgrades from the original Series 5
- Digital voltmeter option provided free from Tektronix with product registration

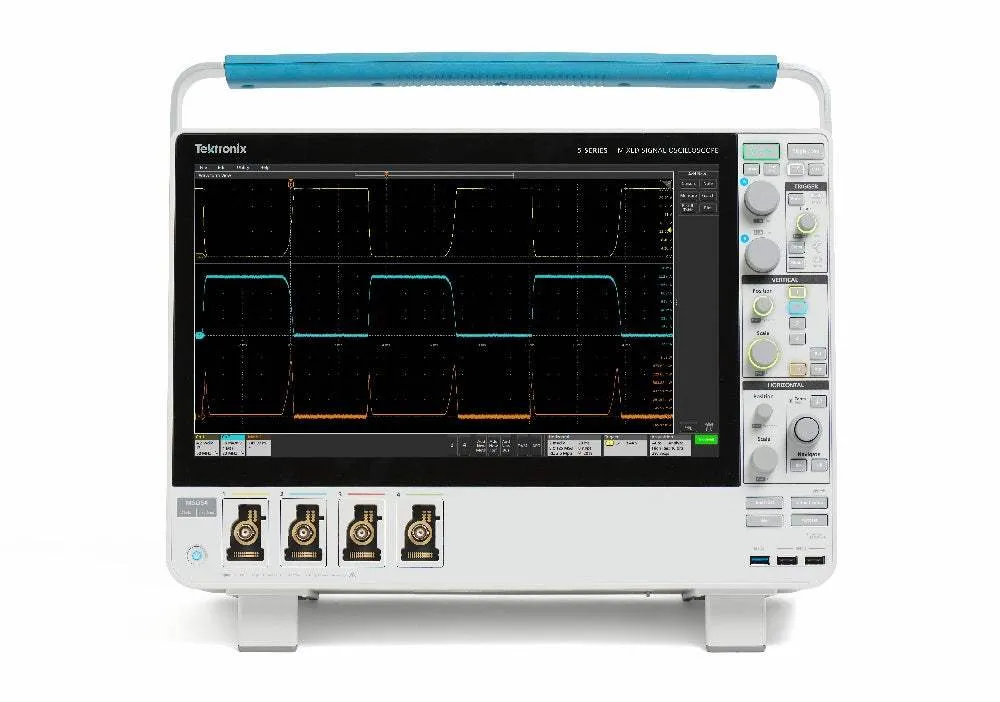

5 Series B MSO (4 Flex Channels / 500 MHz)
The 5 Series MSO offers better visibility into complex systems by offering four, six, and eight-channel models with a large 15.6-inch high-definition (1,920 x 1,080) display. Many applications, such as embedded systems, three-phase power electronics, automotive electronics, power supply design, and DC-to-DC power converters, require the observation of more than four analog signals to verify and characterize device performance and to debug challenging system issues.
5 Series vs 5 Series B
Tektronix now offers the 5 Series B MSO with several enhancements over the original Series 5.
New features include
- New auxiliary trigger input that lets users synchronize the oscilloscope to an external signal without consuming any of the 4, 6, or 8 full-capability input channels
- Maximum frequency for the optional, built-in arbitrary/function generator increased from 50MHz to a best in class 100 MHz
- A faster processor makes controls even more responsive and will support additional, more complex measurement analysis in the future
- History Mode leverages the 5 Series B's extended memory, allowing users to capture thousands of triggered events and easily review them to find events of interest
- Solid State Drive System ensures all user data is stored on a removable drive. For secure labs where measurement data integrity is mission-critical
