Fitment Information

• This RA-series conversion kit is suitable with all gasoline types including unleaded, leaded, oxygenated, and pre-mixes. Furthermore, they are compatible with alcohol blends of fuel including methanol, ethanol, and E85.

Specifications

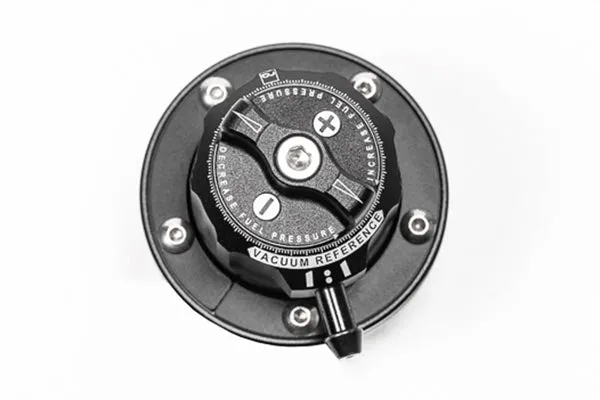

FUEL PRESSURE ADJUSTMENT

RA-series regulators feature the first tool-less pressure adjustment. A jam nut and set screw are no longer required. With a simple turn of the knob, pressure will be increased or decreased.To aid in adjusting pressure, there are incremental detents that provide haptic feedback to the user. Every detent permits 1psi ( /-0.5psi) of adjustment depending on current fuel pressure.

FUEL PRESSURE STABILITY

With years of track and bench testing data, the RA-series regulators have been refined to optimize pressure management. A newly designed single stainless steel return orifice generates laminar flow that enhances stability control.

-Minimum Pressure: 18.5psi (1.3bar)
-Maximum Pressure: *N/A
*This is rhetorical. The maximum pressure is dependent on the relief valve inside the pump or the maximum current the fuel pump controller allows.

FUEL COMPATIBILITY

This RA-series conversion kit is suitable with all gasoline types including unleaded, leaded, oxygenated, and pre-mixes. Furthermore, they are compatible with alcohol blends of fuel including methanol, ethanol, and E85.

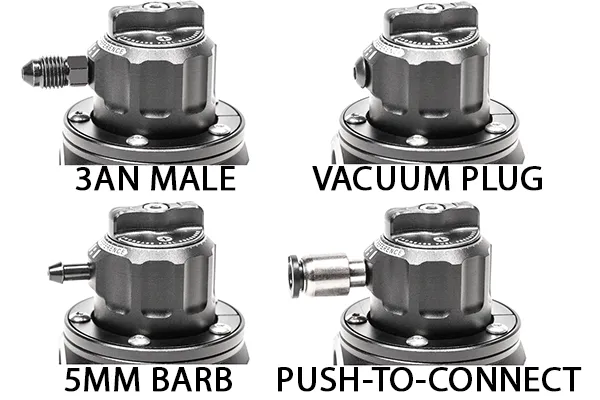

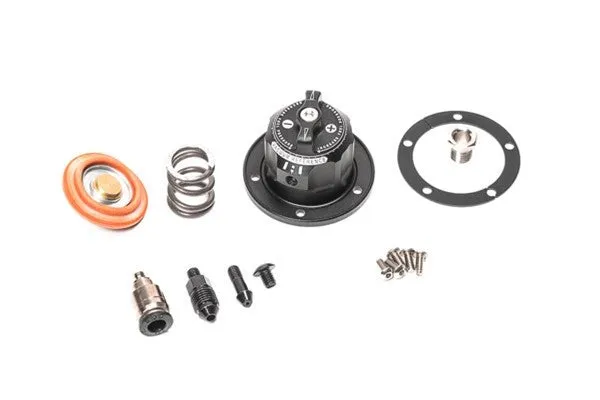

What Includes

• Upper Rotating Assembly
• 5mm Barbed Vacuum Fitting
• Vacuum Plug Fitting (Returnless)
• 1/4" Push-To-Connect Vacuum Fitting
• 3AN Male Vacuum Fitting
• Anodized Half Moon Retainers (x2)
• Stainless Steel Return Orifice
• Stainless Button Head Screws (x5)
• Stainless Steel Spring
• Fluorosilicone Diaphragm

Product Description

This kit permits all previous Radium Engineering adjustable fuel pressure regulators to be converted to an RA-Series FPR. This will add all of the newest features as well as performance enhancements to older regulators.
